0.5mm Pitch Single Slot BTB Male Connector (BP050SA - 0570)
Specifications
Current Rating |
0.5 A |
Voltage Rating |
AC 50 V |
Contact Resistance |
50mΩMax. Initial |
Operating Temperature |
-40℃~+105℃ |
Insulation Resistance |
100MΩ |
Withstanding Voltage |
500V AC/60S |
Max Processing Temperature |
260℃ for 10 Seconds |
Contact Material |
Copper Alloy |
Housing Material |
High Temperature Thermoplastic. UL 94V-0 |
Features
The 0.5mm pitch single slot BTB male connector is a critical element in electronic devices and systems. This connector is designed to provide a reliable and secure connection between printed circuit boards (PCBs) and various electronic components. Thanks to its compact size and excellent performance, it is extensively utilized in numerous applications, including consumer electronics, telecommunications, automotive, and industrial equipment.
This male connector features a 0.5mm pitch, which refers to the gap between the center of one contact point to the center of the next. The small pitch size allows for a higher connection density on the PCB, making it ideal for situations where space is limited. Additionally, the single slot design simplifies the assembly process and ensures a secure connection between the connector and PCB.
One key advantage of the 0.5mm pitch single slot BTB male connector is its reliability. The connector is built to withstand mechanical stress, temperature changes, and electrical interference, ensuring a stable and uninterrupted connection in demanding conditions. This reliability is essential for maintaining the overall performance and longevity of electronic devices.
In summary, the 0.5mm pitch single slot BTB male connector is a vital component in modern electronic systems. Its small size, high reliability, and ease of use make it an ideal choice for a variety of applications. Whether in consumer electronics, telecommunications, automotive, or industrial equipment, this connector plays a crucial role in ensuring seamless connectivity and optimal performance. As technology advances, the demand for high-quality connectors like the 0.5mm pitch single slot BTB male connector is expected to grow, driving innovation and further improvements in electronic connectivity solutions.

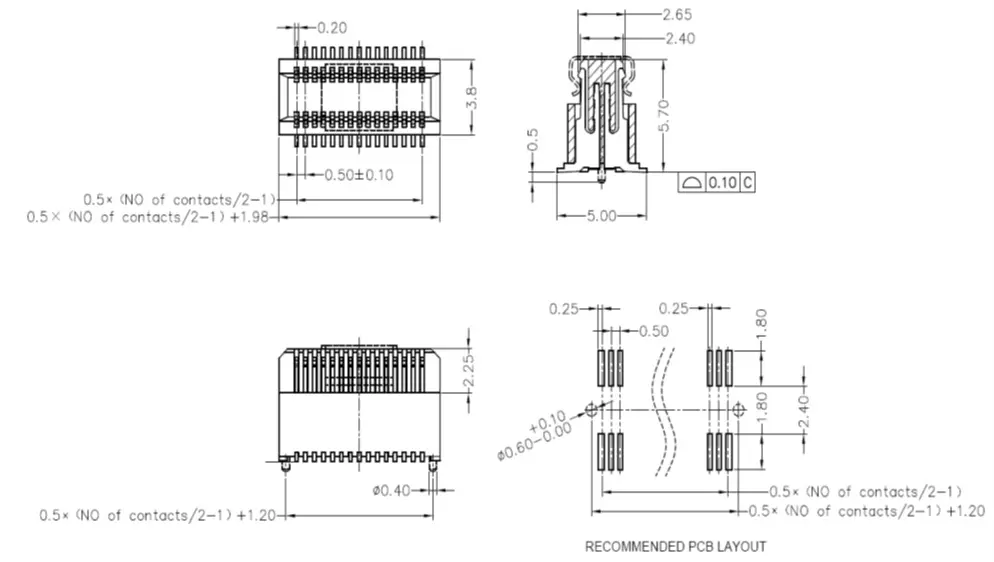

Dimension Drawings

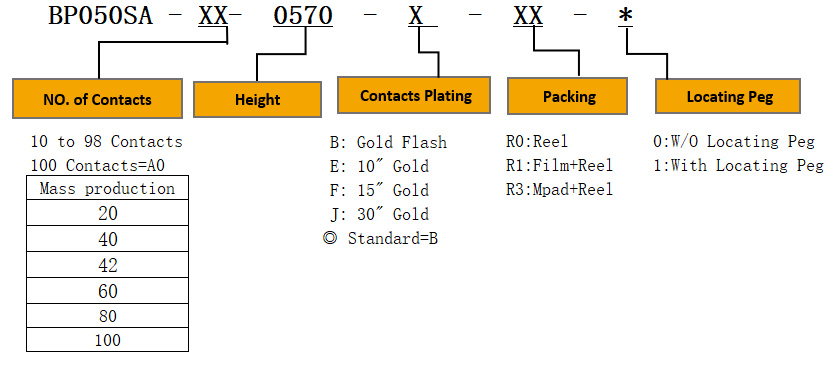

Ordering Information
Stacking height
