0.5mm Pitch Single Slot BTB Female Right Angel Connector (BS050RA - 0540)
Specifications
Current Rating |
0.5 A |
Voltage Rating |
AC 50 V |
Contact Resistance |
50mΩMax. Initial |
Operating Temperature |
-40℃~+105℃ |
Insulation Resistance |
100MΩ |
Withstanding Voltage |
500V AC/60S |
Max Processing Temperature |
260℃ for 10 Seconds |
Contact Material |
Copper Alloy |
Housing Material |
High Temperature Thermoplastic. UL 94V-0 |
Features
The 0.5mm pitch single slot BTB female right angle connector is a crucial component in electronic devices and systems. This connector is designed to provide a reliable and secure connection between printed circuit boards (PCBs) or flexible printed circuits (FPCs). Its compact size and high-performance capabilities make it an ideal choice for various applications in industries such as telecommunications, consumer electronics, and automotive.
This connector features a 0.5mm pitch, which refers to the distance between the center of one contact point to the center of the adjacent contact point. The small pitch size allows for high-density mounting, making it suitable for space-constrained designs. The single slot design means that it has a single row of contacts, which simplifies the mating process and reduces assembly time.
The right angle configuration of the connector enables it to be mounted perpendicular to the PCB or FPC, making it suitable for applications where space is limited or where a low-profile connection is required. This design also helps in optimizing the use of board space and allows for efficient routing of other components on the PCB.
The BTB (board-to-board) connection type ensures a reliable electrical connection between two separate PCBs or FPCs. This is essential for maintaining signal integrity and minimizing signal loss in high-speed data transmission applications. The female connector is designed to mate with a corresponding male connector, providing a secure and stable connection.
The 0.5mm pitch single slot BTB female right angle connector is engineered to meet industry standards for performance and reliability. It is constructed using high-quality materials and undergoes rigorous testing to ensure durability and long-term functionality in demanding operating environments.
In conclusion, the 0.5mm pitch single slot BTB female right angle connector is a versatile and dependable interconnect solution for modern electronic designs. Its compact size, high-density mounting capability, and reliable performance make it an essential component for a wide range of electronic applications. Whether used in smartphones, tablets, automotive infotainment systems, or industrial equipment, this connector plays a crucial role in enabling seamless connectivity and functionality.
The Single Slot BTB Male Connector is engineered to deliver exceptional performance and durability. Its compact design and precise construction make it ideal for use in space-constrained environments, while its robust build ensures long-lasting reliability. Whether you’re designing a new electronic device or upgrading an existing system, this connector is the perfect choice for ensuring secure and stable connections.

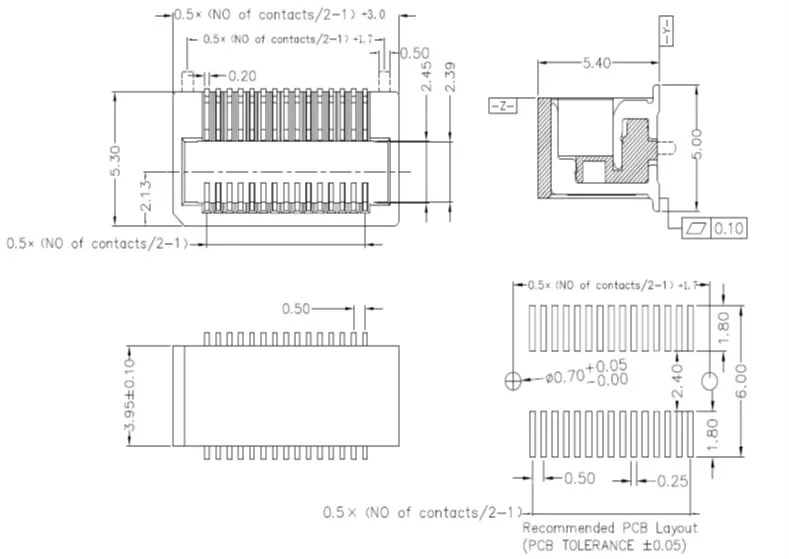

Dimension Drawings

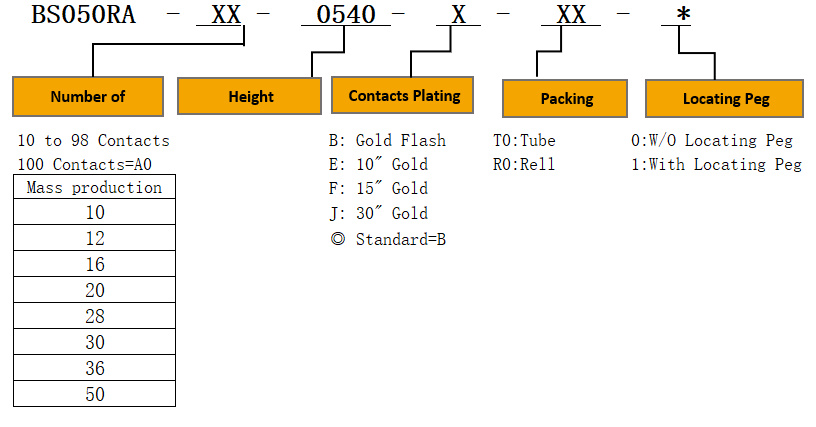

Ordering Information
Stacking height
