Top Socket Pin Header Types You Should Know About?

Socket Pin Headers are essential components in electronics, facilitating connections between circuit boards and various devices. They provide secure and reliable interfaces for signal and power transmission. Understanding the different types of socket pin headers is crucial for engineers and hobbyists alike. This knowledge aids in selecting the right header for specific applications.

There are several socket pin header styles, each suited for various tasks. For example, straight headers suit compact designs, while right-angle headers save space. The material used can also affect performance and durability. Different pin counts allow for flexibility in design and connection options.

Choosing the correct socket pin header can be challenging. It requires a careful consideration of size, pitch, and durability. Mistakes can lead to poor performance or connectivity issues. By exploring the top socket pin header types, we can improve our understanding of their applications and enhance our projects.

Table of Contents [Hide]

1 Understanding Socket Pin Headers: Definition and Purpose

2 Common Types of Socket Pin Headers Used in Electronics

3 Key Features to Consider When Choosing Socket Pin Headers

4 Applications of Socket Pin Headers in Various Industries

5 Best Practices for Installing and Using Socket Pin Headers

Understanding Socket Pin Headers: Definition and Purpose

Socket pin headers play a crucial role in electronics. They connect components on a circuit board, ensuring signals and power are transmitted effectively. Each pin on the header serves a specific function, making it essential to choose the right type for your project. Different pin configurations can optimize connectivity depending on the device requirements.

The purpose of socket pin headers extends beyond mere connection. They provide a reliable interface for removable components. This feature allows for easy upgrades and repairs, enhancing the longevity of electronic devices. Few realize the intricate design behind pin headers. They come in various pitches and pin counts, impacting compatibility with other components.

Choosing the right socket pin header can be puzzling. Many overlook factors like pin spacing and material quality. A mismatch can lead to connection failures or device malfunctions. It's not uncommon to see projects fail because the wrong header was used. Even experienced engineers face challenges in this area, reminding us that precision is vital in electronics. Recognizing these nuances can make a significant difference.

Top Socket Pin Header Types You Should Know About

Pin Header Type	Number of Pins	Pitch Size	Material	Typical Use
Single Row Header	2 - 40	2.54 mm	Copper Alloy	General Connections
Double Row Header	4 - 80	2.54 mm	Copper Alloy	Multi-Function Boards
Stackable Header	2 - 16	2.54 mm	Brass	Extending Features
Right Angle Header	2 - 20	2.54 mm	Plastic and Metal	PCB Space Saving
Vertical Header	2 - 30	2.54 mm	Copper	Standard Applications

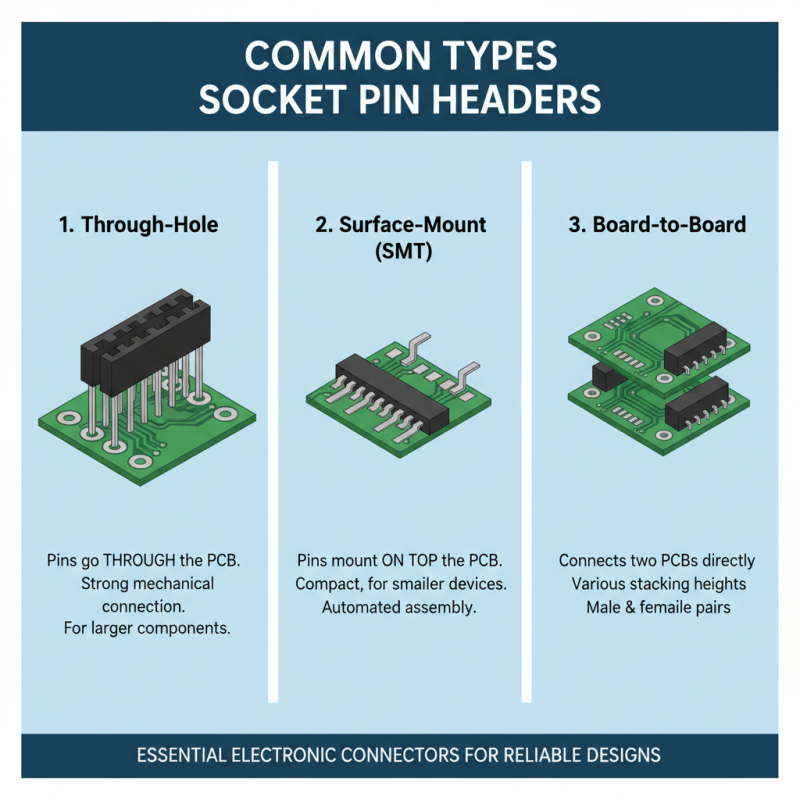

Common Types of Socket Pin Headers Used in Electronics

Socket pin headers are essential components in electronic devices. These connectors allow for secure and efficient connections between circuit boards and other components. Understanding the common types of socket pin headers can help engineers make informed design decisions.

One popular type is the single-row pin header. These headers typically feature a compact design, ideal for tight spaces. According to industry reports, single-row headers are widely used in consumer electronics, accounting for around 40% of the total market share. The ease of use in prototyping contributes to their popularity among engineers.

Another common type is the dual-row pin header. This design allows for higher density connections in more complex applications. Based on statistical data from the electronics industry, dual-row headers are increasingly favored in computing devices. Their versatility makes them suitable for a range of applications, including telecommunication and automotive sectors. However, with increased density comes a potential for misalignment during assembly, which can complicate the manufacturing process.

Choosing the right socket pin header is essential. Each type offers distinct advantages and potential drawbacks. Engineers must weigh the needs of their projects against these factors to achieve reliable connections.

Key Features to Consider When Choosing Socket Pin Headers

When selecting socket pin headers, key features significantly influence the performance and compatibility of your electronic projects. One important aspect is the pin spacing. Common configurations include 2.54mm and 2.0mm spacings, and your choice should match the corresponding PCB design. Precision in spacing ensures a secure connection and helps prevent misalignment during assembly.

Another factor to consider is the number of pins. More pins can provide additional functionality but may also complicate your design. A careful balance between necessary features and simplicity is crucial. Additionally, look for headers that offer reliable contact materials. Materials such as gold or tin plating can enhance conductivity and reduce corrosion.

Pay attention to the gender of the headers as well. Male headers are typically used for PCB connections, while female headers offer flexibility in mating with other components. While it may seem minor, this choice impacts connectivity and can lead to significant issues if overlooked. Understanding these elements aids in selecting the best socket pin headers for your needs, ensuring durability and efficiency in your projects.

Top Socket Pin Header Types You Should Know About

Applications of Socket Pin Headers in Various Industries

Socket pin headers are vital in many industries. They provide a reliable way to connect electronic components. In automotive, they facilitate connections between sensors and central control units. This ensures smooth data transfer, vital for modern vehicle performance.

In the medical field, socket pin headers are used in diagnostic equipment. They connect various sensors and modules, helping in accurate health monitoring. Durable and reliable, these connectors are essential for patient safety. However, improper connections can lead to inaccuracies in readings.

Moreover, socket pin headers are prevalent in consumer electronics. They are found in devices like laptops and smartphones. These connections support communication between processors and memory chips. Despite their robustness, user error can compromise functionality. Understanding proper handling is crucial for optimal device performance.

Best Practices for Installing and Using Socket Pin Headers

When working with socket pin headers, it's critical to maintain best practices during installation. One key aspect is ensuring proper alignment. Misalignment can lead to weak connections or even damage the header pins. Use a magnifying glass if needed to inspect the alignment of pins. Secure your headers firmly to prevent movement during soldering, which can cause misalignment.

Before soldering, check the temperature of your soldering iron. Too high a temperature can melt plastic components. Conversely, a low temperature may not create a good connection. Aim for a balance that ensures a solid solder joint without damaging the header.

Another consideration is the use of heat shrink tubing. This simple addition provides extra protection against short circuits. It's also important to keep the workspace clean. Dust and debris can affect soldering quality. Regularly clear your area to avoid preventable issues. Finally, take your time. Rushing can lead to mistakes. Every project calls for patience and careful attention.
