0.5mm Pitch Single Slot BTB Male Connector With Tap (BP050SA - 0330 - T)

This cutting-edge connector is designed to provide seamless, reliable connections for a variety of electronic devices and applications.

The connector spacing is 0.5mm and uses SMT welding to provide precise and safe connections. It is available in multiple pin configurations, including 10, 14, 20, 30, 32, 36, 40, 50, 60, 80, 100 and 120 pins to meet different connectivity needs. Vertical connection types ensure efficient space utilization and easy integration into your design.

One of the connector’s main highlights is its impressive 5 Gbps transmission speed, making it suitable for high-speed data transfer applications. Whether it’s consumer electronics, telecommunications or industrial equipment, this connector delivers superior performance.

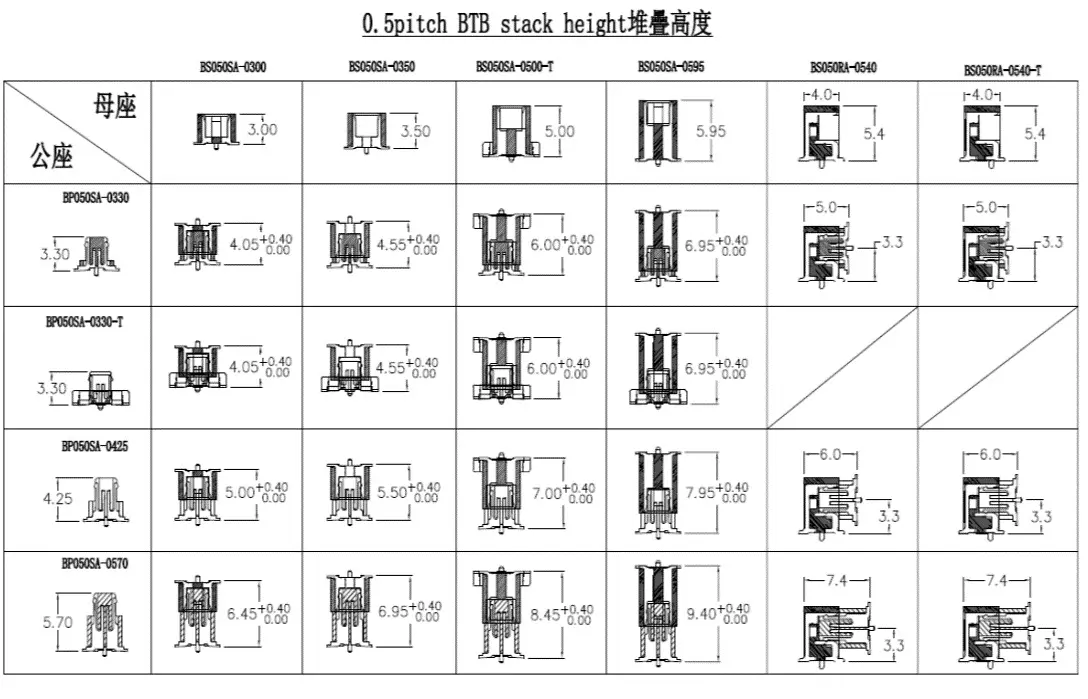

Stacking heights range from 4.05mm to 9.4mm, providing design and assembly flexibility, allowing you to customize connectors to specific requirements. This versatility makes it ideal for compact and dense PCB layouts.

In addition to technical capabilities, our 0.5mm pitch single slot board-to-board male connectors are designed to meet the highest quality standards, ensuring reliability and durability in demanding operating environments. Its rugged construction and reliable performance make it a reliable solution for your connectivity needs.

Whether you are designing the latest smartphone, tablet or any other electronic device, our 0.5mm pitch single slot board-to-board male connectors are perfect for seamless high-speed data transfer. Trust our connectors to provide the connection solution you need for your next project.
