0.5mm Pitch Single Slot BTB Male Connector (BP050SA - 0425)
Specifications
Current Rating |
0.5 A |
Voltage Rating |
AC 50 V |
Contact Resistance |
50mΩMax. Initial |
Operating Temperature |
-40℃~+105℃ |
Insulation Resistance |
100MΩ |
Withstanding Voltage |
500V AC/60S |
Max Processing Temperature |
260℃ for 10 Seconds |
Contact Material |
Copper Alloy |
Housing Material |
High Temperature Thermoplastic. UL 94V-0 |
Features
The 0.5mm pitch single slot BTB male connector serves as a pivotal element in electronic devices and systems. This connector aims to deliver a dependable and secure connection between printed circuit boards (PCBs) and various electronic components. Due to its compact size and high performance, it is extensively utilized in a myriad of applications, including consumer electronics, telecommunications, automotive, and industrial equipment.
This male connector possesses a 0.5mm pitch, referring to the span between the center of one contact point and the center of the next. The small pitch dimension permits a higher connection density on the PCB, making it perfect for situations where space is constrained. Additionally, the single slot design facilitates the assembly process and guarantees a secure link between the connector and PCB.
A primary advantage of the 0.5mm pitch single slot BTB male connector is its dependability. The connector is designed to resist mechanical stress, temperature fluctuations, and electrical interference, ensuring a stable and continuous connection in challenging operating conditions. This reliability is crucial for sustaining the overall performance and longevity of electronic devices.
Moreover, the connector is crafted for simplicity of use and maintenance. Its compact dimensions and user-friendly interface ease the assembly and disassembly processes, decreasing installation time and effort. This feature is especially advantageous for manufacturers aiming to streamline their production workflows and enhance overall efficiency.
In summary, the 0.5mm pitch single slot BTB male connector stands as a vital element in contemporary electronic systems. Its small size, high reliability, and ease of use render it an ideal choice for a broad range of applications. Be it in consumer electronics, telecommunications, automotive, or industrial equipment, this connector plays a pivotal role in ensuring seamless connectivity and optimal performance. As technology progresses, the demand for superior connectors like the 0.5mm pitch single slot BTB male connector is anticipated to grow, fueling innovation and further enhancements in electronic connectivity solutions.
In addition to its compatibility, the Single Slot BTB Male Connector offers easy installation and maintenance. Its user-friendly design and intuitive interface make it simple to integrate into your designs, saving you time and effort during the assembly process. Furthermore, its durable construction minimizes the need for frequent maintenance, reducing downtime and ensuring uninterrupted operation.
When it comes to performance, the Single Slot BTB Male Connector excels in delivering high-speed data transmission and reliable power delivery. Its precision-engineered contacts and robust housing ensure low insertion loss and high signal integrity, making it the perfect choice for demanding applications that require high-speed connectivity and power efficiency.

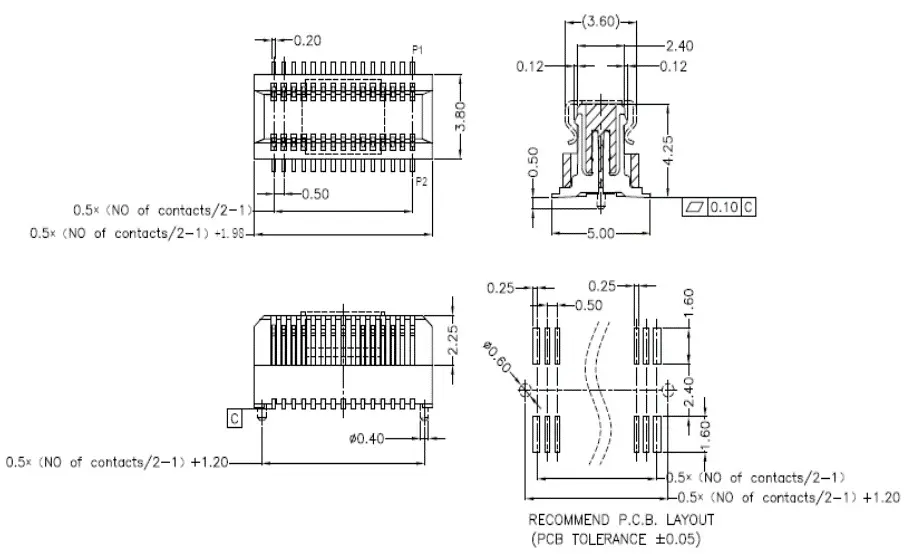

Dimension Drawings

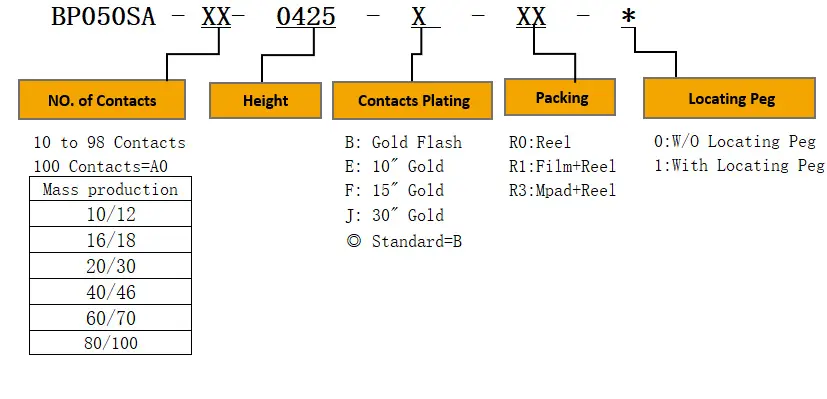

Ordering Information
