0.5mm Pitch Single Slot Board To Board Male Connector (BP050SA - 0330)
Specifications
Current Rating |
0.5 A |
Voltage Rating |
AC 50 V |
Contact Resistance |
50mΩMax. Initial |
Operating Temperature |
-40℃~+105℃ |
Insulation Resistance |
100MΩ |
Withstanding Voltage |
500V AC/60S |
Max Processing Temperature |
260℃ for 10 Seconds |
Contact Material |
Copper Alloy |
Housing Material |
High Temperature Thermoplastic. UL 94V-0 |
Features
This cutting-edge connector is designed to provide seamless and reliable connections in a wide range of electronic devices and applications.
With a pitch of 0.5mm and a soldering type of SMT, this connector offers precise and secure connections. It is available in various pin configurations, including 10, 14, 20, 30, 32, 36, 40, 50, 60, 80, 100, and 120 pins, catering to diverse connectivity needs. The vertical connection type ensures efficient space utilization and easy integration into your designs.
One of the key highlights of this connector is its impressive transmission speed of 5 Gbps, making it suitable for high-speed data transfer applications. Whether it’s for consumer electronics, telecommunications, or industrial equipment, this connector delivers exceptional performance.
The stacking height options ranging from 4.05mm to 9.4mm provide flexibility in design and assembly, allowing you to customize the connector based on your specific requirements. This versatility makes it an ideal choice for compact and densely populated PCB layouts.
In addition to its technical capabilities, our 0.5mm Pitch Single Slot Board to Board Male Connector is built to meet the highest quality standards, ensuring reliability and durability in demanding operating environments. Its robust construction and dependable performance make it a dependable solution for your connectivity needs.
Whether you are designing the latest smartphone, tablet, or any other electronic device, our 0.5mm Pitch Single Slot Board to Board Male Connector is the perfect choice to enable seamless and high-speed data transmission. Trust in our connector to deliver the connectivity solutions you need for your next project.

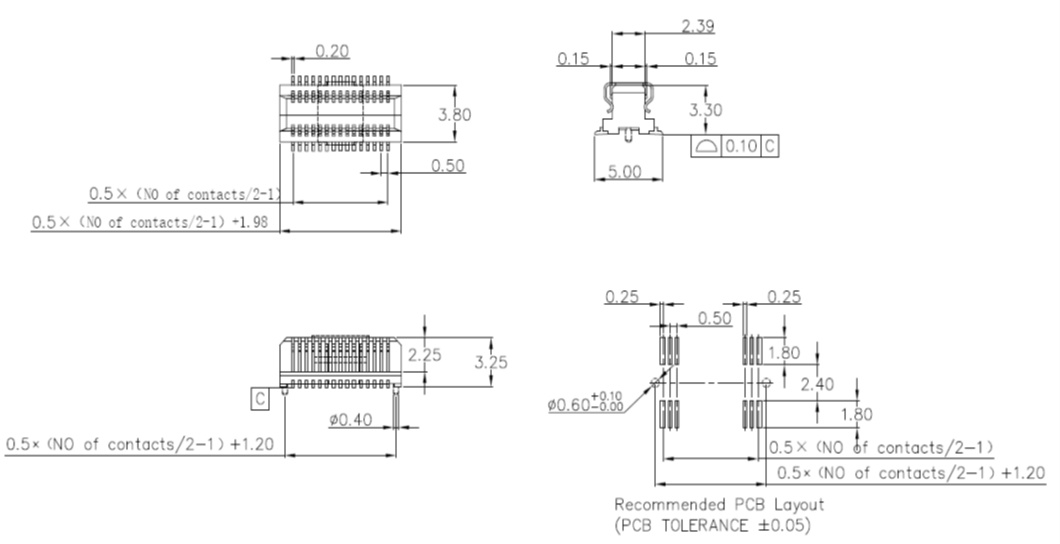

Dimension Drawings

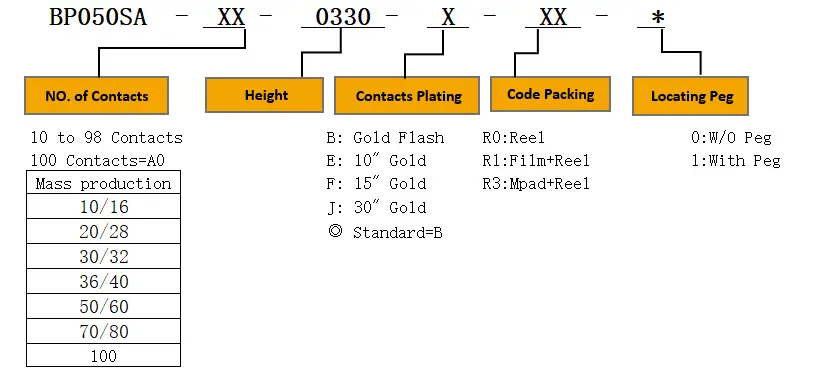

Ordering Information
Stacking height
