Pitch 1.27mm Borad Stack Header (HB127SL-2300)
Feature
SMD Design: The 1.27mm SMD pin header features an SMD design, making it easy to surface-mount on a PCB and improving production efficiency.
Small Pitch: With a small pitch, it is plug-and-play and provides reliable contact for high-density electrical connection needs.
High Reliability: Made of high-quality materials, it ensures the normal operation of electronic devices.
Specifications
Current Rating |
1 A |
Voltage Rating |
AC/DC 30 V |
Contact Resistance |
20mΩMax. |
Operating Temperature |
-40℃~+105℃ |
Insulation Resistance |
5000MΩ |
Withstanding Voltage |
500V AC/60S |
Max Processing Temperature |
260℃ for 10 Seconds |
Contact Material |
Copper Alloy, Plating Au/ Sn or others |
Housing Material |
Thermoplastic or High Temperature Thermoplastic, UL 94V-0 |

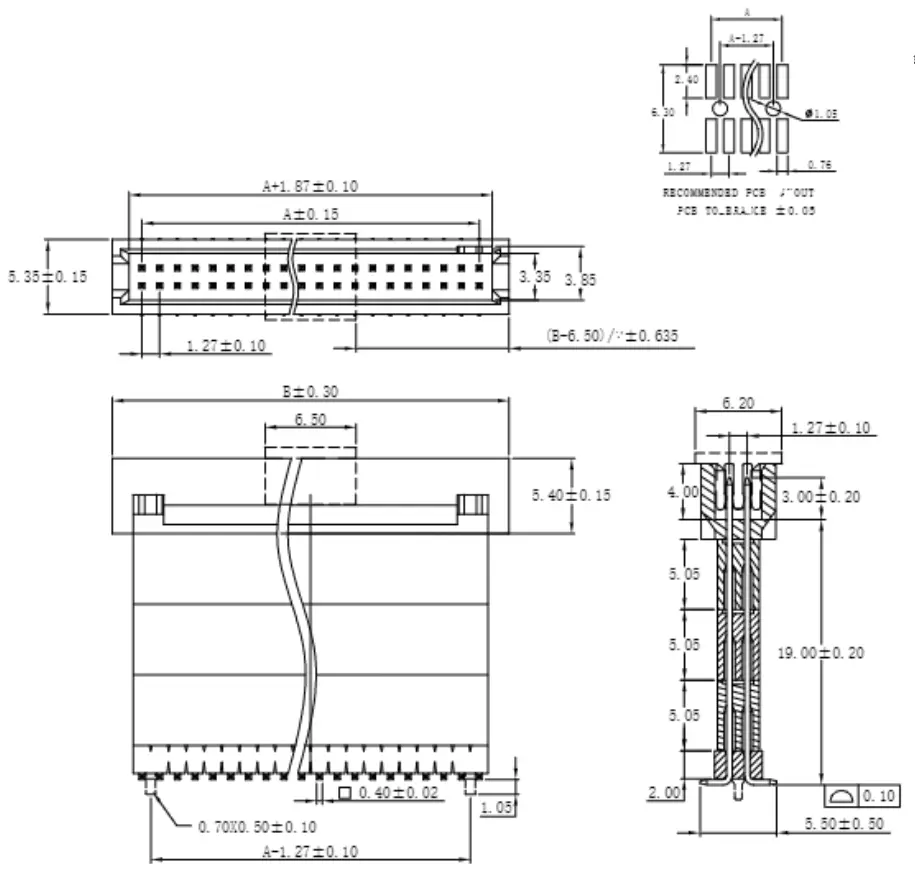

Dimension Drawings
Advantages
Miniaturized design: ADAPTS to the trend of reducing the size of electronic devices.
High density pins: The small pitch design allows it to accommodate more pins, enhances the density and function of the electrical connector.
Stable and reliable: is made of high quality materials and technology, has high stability and reliability.
In addition, 1.27 mm lie on row needles in the parameter, materials and features in detail, , materials including row needle spacing composition, rated current , contact resistance, insulation impedance , resistance to voltage and temperature range, etc., in various application environments are these features to ensure its stability and reliability
Applications
1.27mm patch pin is widely used in a variety of electronic equipment, including but not limited to communication equipment, computers and peripherals, consumer electronic products and industrial control equipment.
