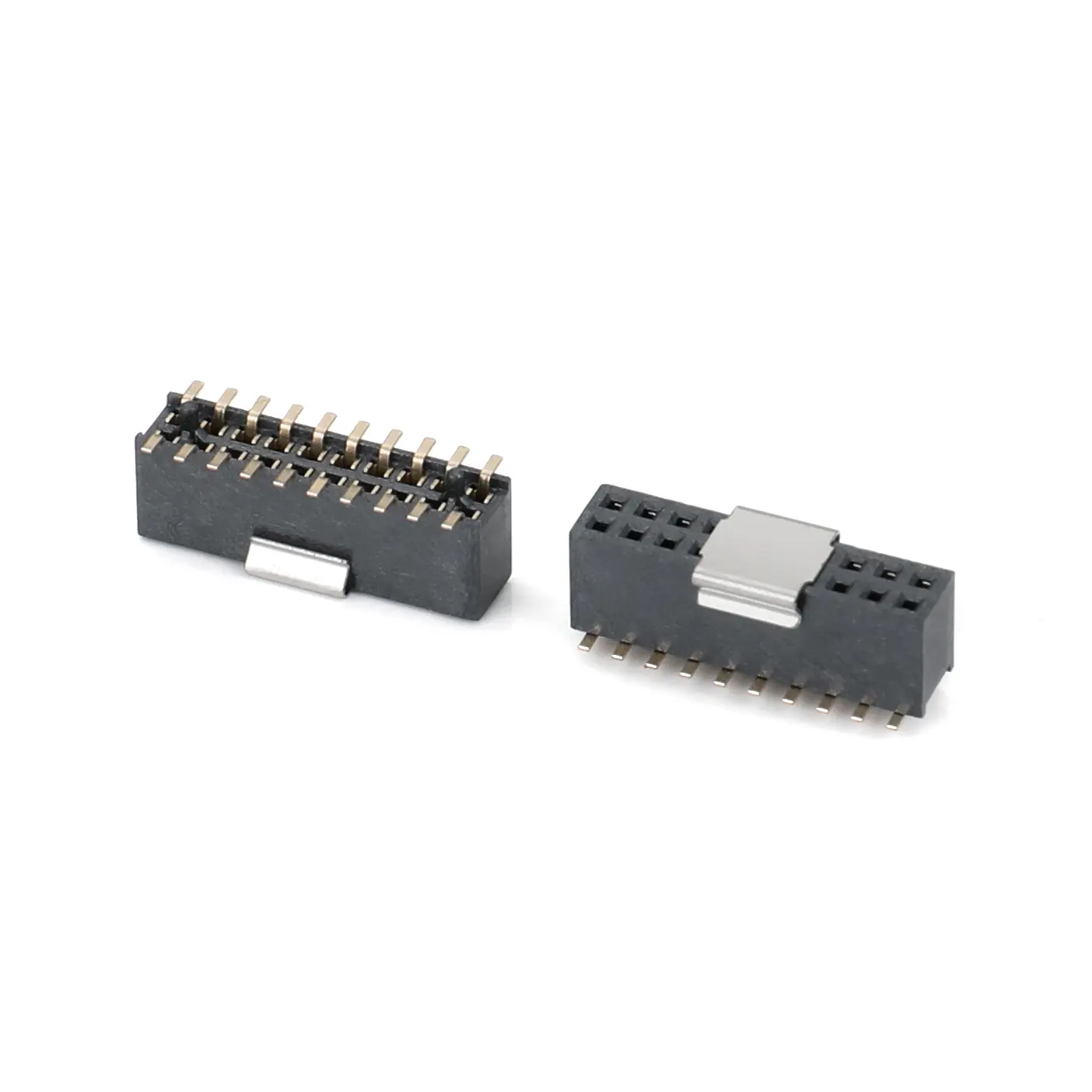

Pitch 1.27mm Borad Stack Header (HB127SK-1900)
Feature
1.27mm patch pin is a compact, high density electrical connector, has the characteristics of patch design, small spacing , reliability and so on.
Small spacing: its small spacing, plug and play, reliable contact, suitable for high-density electrical connection needs.
Strong reliability: made of high quality materials, to ensure the normal work of electronic equipment. Specifications
Current Rating |
1 A |
Voltage Rating |
AC/DC 30 V |
Contact Resistance |
20mΩMax. |
Operating Temperature |
-40℃~+105℃ |
Insulation Resistance |
5000MΩ |
Withstanding Voltage |
500V AC/60S |
Max Processing Temperature |
260℃ for 10 Seconds |
Contact Material |
Copper Alloy, Plating Au/ Sn or others |
Housing Material |
Thermoplastic or High Temperature Thermoplastic, UL 94V-0 |

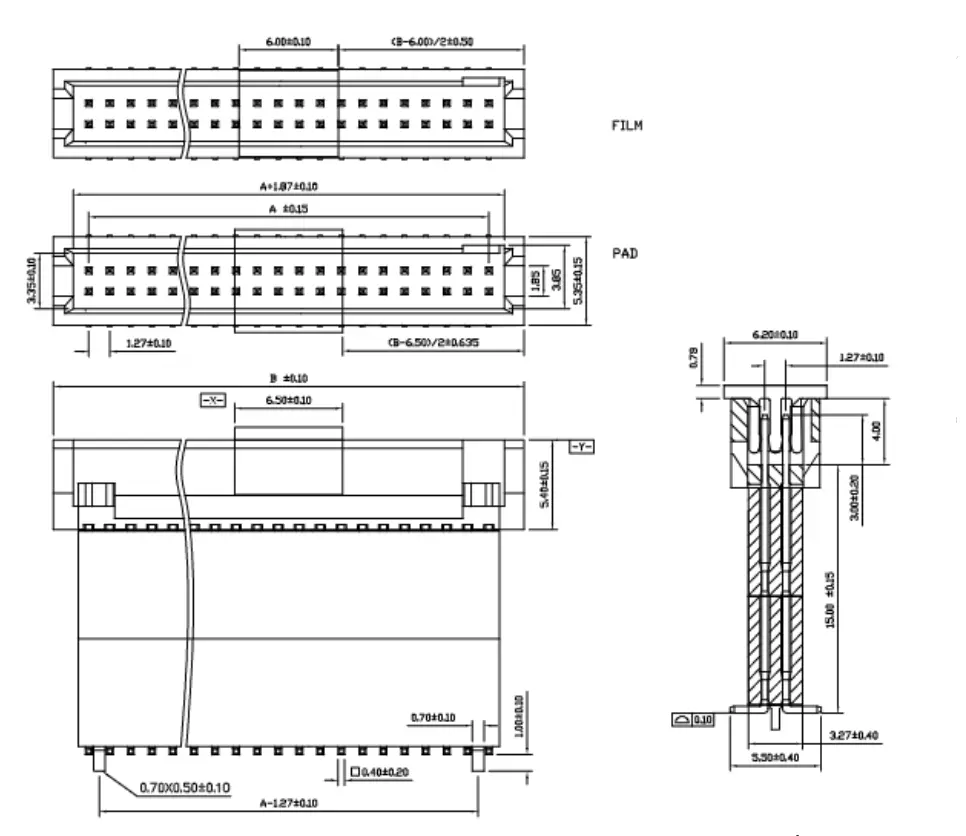

Dimension Drawings
Advantages
Compact Design: Adapted to the trend of shrinking the size of electronic devices.
High Density Pins: The small pitch design allows for more pins to be accommodated, enhancing the density and functionality of the electrical connector.
Reliable and Stable: Manufactured using high-quality materials and processes, it has a high degree of stability and reliability.
In addition, the 1.27mm flat-mount header has detailed descriptions of its parameters, materials, and characteristics, including pin pitch, material composition, rated current, contact resistance, insulation resistance, withstanding voltage, and temperature range. These characteristics ensure its stability and reliability in various application environments.
Applications
The 1.27mm SMD pin header is widely used in various electronic devices, including but not limited to communication equipment, computers and their peripheral devices, consumer electronics products, and industrial control equipment, etc. Advantages
