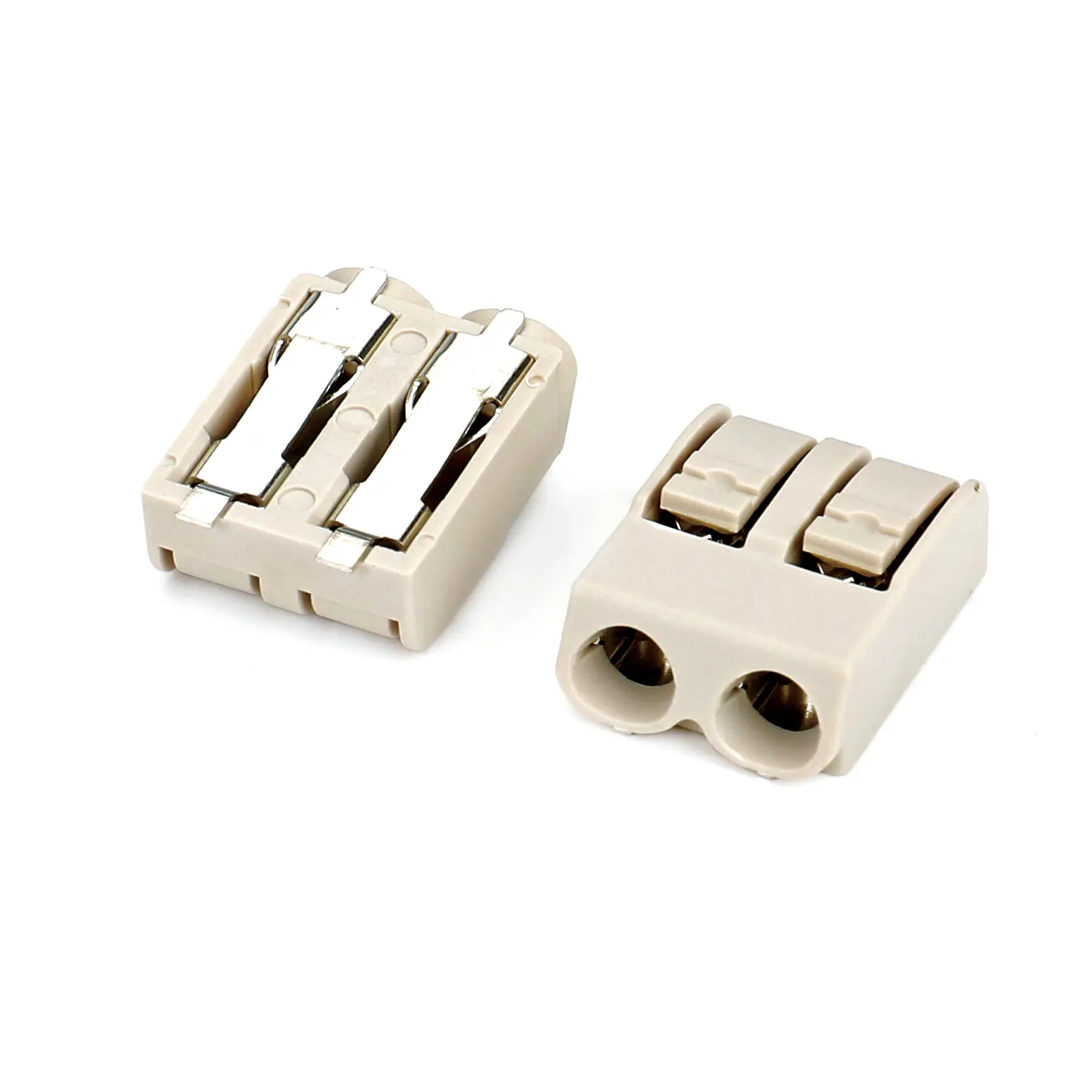

Pitch 0.6mm 2 Pin SMD LED Socket Connector (CT2061-02)

2pinPitch: 0.6mm

Pin: 2 pins

SMD

    Contact us
    Product Detail

    CT2061-02

    Current  Rating :

    9.0A
    Voltage  Rating:    320V(UL),250V(IEC)
    Operation Temperature:    ﹣40℃~ +105℃
    Insulation  Resistance: 500MΩ OHMS MIN.DC 500V
    Withstanding  Voltage:   2500V AC/60S
    Terminales Conductors 20-60 AWG(0.5-1.5MM²)
    Contact  Material:   Copper Alloy
    Housing  Material:   High Temperature Thermoplastic. UL 94V-0
