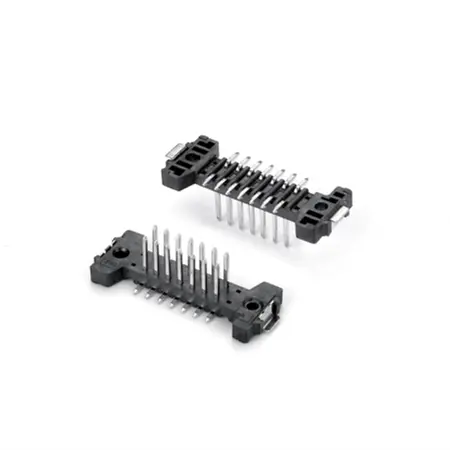

2.2mm Pitch Header
2.2mm Pitch header
| Current Rating: | 1A |
| Voltage Rating: | AC 125V |
| Contact Resistance: | 20mΩ Max. Initial |
| Operation Temperature: | ﹣40℃~ +105℃ |
| Insulation Resistance: | 1000MΩ |
| Withstanding Voltage: | 500V AC/60S |
| Contact Material: | Copper Alloy |
| Housing Material: | Thermoplastic. UL 94V-0 |

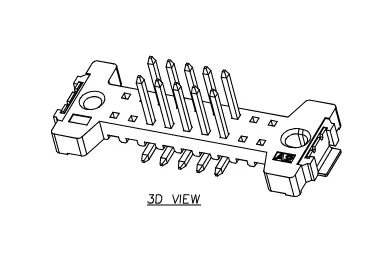

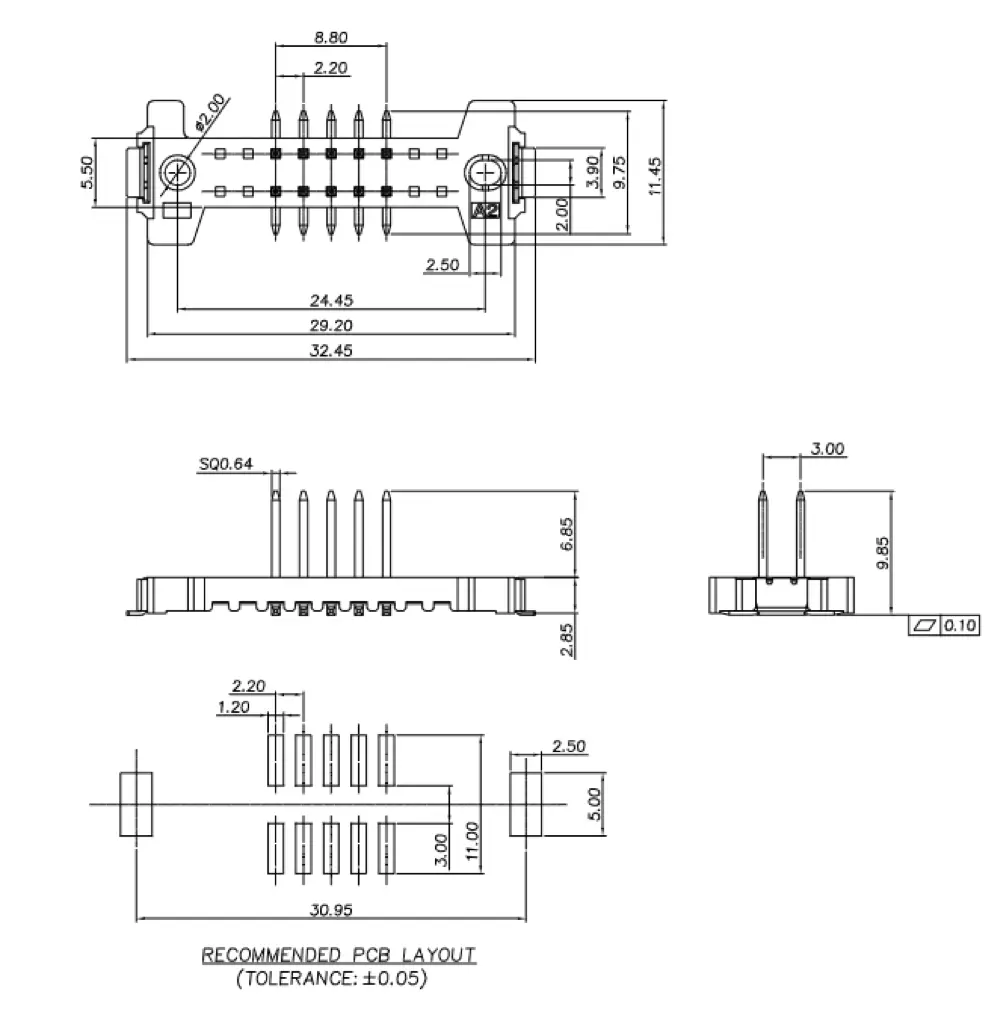

Drawing:
