2.0mm SMD Double Row Box Pin Header(HB200SB-XX-0660)
Feature
The 2.0mm SMD double row box pin header is designed with precision and attention to detail, ensuring a secure and stable connection in any electronic circuit. Some of its key features include:
Double Row Design: The double row configuration of this pin header provides increased connectivity options, allowing for more complex circuit designs and greater flexibility in electronic applications.
SMD Compatibility: This pin header is designed for surface mount technology (SMD), making it easy to integrate into modern electronic designs and ensuring a secure and reliable connection to the PCB.
Box Pin Design: The box pin design offers enhanced stability and durability, ensuring a strong and reliable connection in even the most demanding electronic applications.
High-Quality Materials: Constructed from high-quality materials, this pin header is built to withstand the rigors of electronic use, providing long-lasting performance and reliability.
Specifications
Current Rating |
1 A |
Voltage Rating |
AC/DC 30 V |
Contact Resistance |
20mΩMax. |
Operating Temperature |
-40℃~+105℃ |
Insulation Resistance |
5000MΩ |
Withstanding Voltage |
500V AC/60S |
Max Processing Temperature |
260℃ for 10 Seconds |
Contact Material |
Copper Alloy, Plating Au/ Sn or others |
Housing Material |
Thermoplastic or High Temperature Thermoplastic, UL 94V-0 |

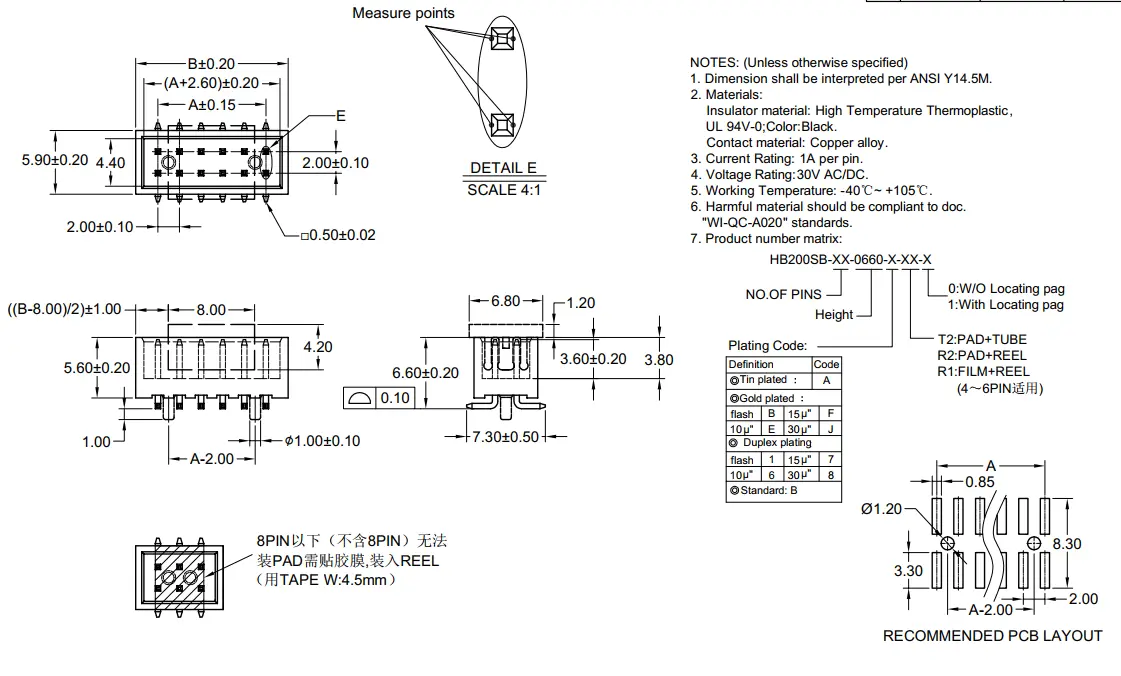

Dimension Drawings
Advantages
The 2.0mm SMD double row box pin header offers a range of advantages that set it apart from other similar components on the market. Some of the key advantages include:
Versatility: With its double row design and SMD compatibility, this pin header is suitable for a wide range of electronic applications, from consumer electronics to industrial equipment.
Secure Connection: The box pin design and high-quality construction ensure a secure and stable connection, reducing the risk of signal loss or connection failure in electronic circuits.
Space-Saving Design: The compact size of this pin header makes it ideal for applications where space is at a premium, allowing for more efficient use of PCB real estate.
Easy Integration: The SMD compatibility of this pin header makes it easy to integrate into modern electronic designs, simplifying the assembly process and reducing production time and costs.
Reliable Performance: Built to the highest standards, this pin header delivers reliable performance in a wide range of operating conditions, making it a dependable choice for electronic projects.
Applications
The 2.0mm SMD double row box pin header is suitable for a wide range of electronic applications, including but not limited to:
Consumer Electronics: From smartphones to gaming consoles, this pin header is ideal for use in a variety of consumer electronic devices.
Industrial Equipment: Its durability and reliability make it well-suited for use in industrial equipment and machinery, where robust performance is essential.
Automotive Electronics: With its secure connection and space-saving design, this pin header is a great choice for automotive electronic systems.
IoT Devices: The versatility and compact size of this pin header make it perfect for use in IoT devices and other connected technologies.
In conclusion, the 2.0mm SMD double row box pin header is a high-quality, versatile, and reliable electronic component that offers a range of features and benefits for a wide variety of electronic applications. Its innovative design, secure connection, and durable construction make it an ideal choice for engineers and designers looking for a dependable pin header solution for their electronic projects.
