2.0mm DIP Double Row Stack Box Pin Header (HB200DF-XXXX )
Feature
Featuring a double row stack box design, this pin header offers a compact and space-saving solution for connecting electronic components on PCBs. The 2.0mm pitch allows for efficient and secure connections, making it suitable for applications where space is limited and reliability is crucial. Whether used in consumer electronics, industrial equipment, or automotive systems, this pin header delivers exceptional performance and connectivity.
One of the key features of the 2.0mm DIP Double Row Stack Box Pin Header is its high-quality construction. Made from durable materials, this pin header is built to withstand the rigors of demanding environments, ensuring long-term reliability and stability. The precision engineering of the pin header also guarantees consistent and secure connections, minimizing the risk of signal interference or loss.
Specifications
Current Rating |
1 A |
Voltage Rating |
AC/DC 30 V |
Contact Resistance |
20mΩMax. |
Operating Temperature |
-40℃~+105℃ |
Insulation Resistance |
5000MΩ |
Withstanding Voltage |
500V AC/60S |
Max Processing Temperature |
260℃ for 10 Seconds |
Contact Material |
Copper Alloy, Plating Au/ Sn or others |
Housing Material |
Thermoplastic or High Temperature Thermoplastic, UL 94V-0 |

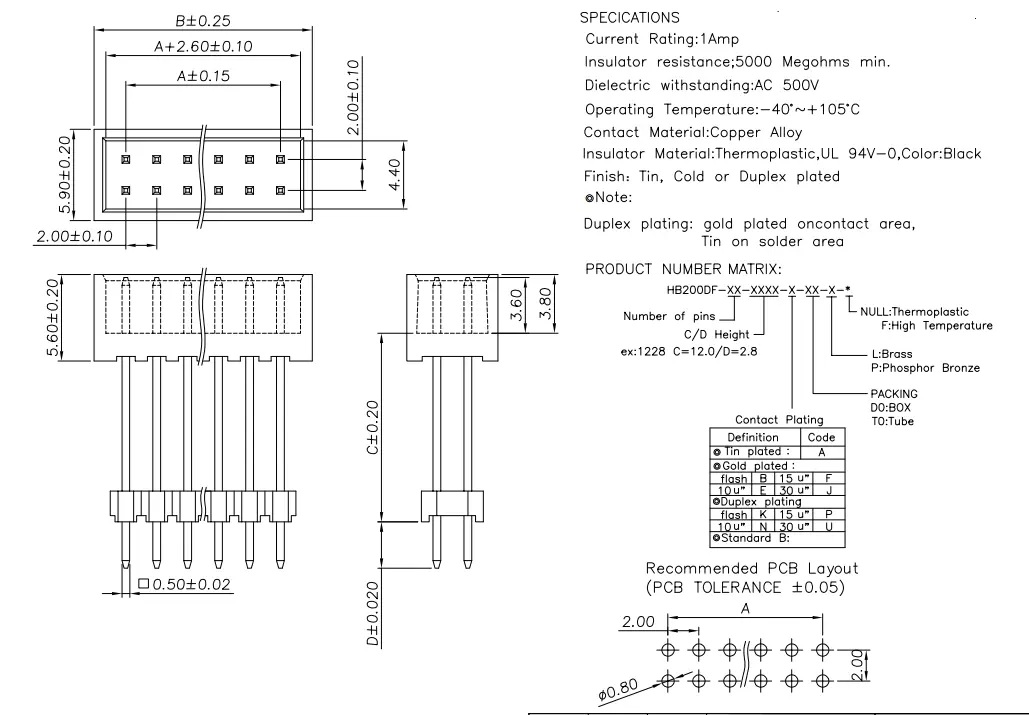

Dimension Drawings
Advantages
The double row stack box design of the pin header offers the advantage of increased connectivity in a compact form factor. With two rows of pins, this header allows for a higher density of connections, making it suitable for applications that require multiple signal paths or interfaces. This feature is particularly beneficial in applications where space optimization is essential, allowing for more efficient PCB layouts and streamlined designs.
In addition to its compact design, the 2.0mm DIP Double Row Stack Box Pin Header offers versatility in its applications. Whether used for board-to-board connections, wire-to-board connections, or other interconnect solutions, this pin header provides a reliable and flexible connectivity solution. Its compatibility with various electronic components and PCB layouts makes it a valuable asset in the design and assembly of electronic devices.
Furthermore, the pin header’s compatibility with through-hole mounting technology ensures easy and secure installation on PCBs. This simplifies the assembly process, saving time and effort during production. The secure mounting also enhances the overall durability and stability of the connections, making it suitable for applications that are subject to vibration, shock, or other environmental stresses.
Applications
The 2.0mm DIP Double Row Stack Box Pin Header is designed to meet the demanding requirements of modern electronic systems. Its high-quality construction, compact design, and versatile applications make it an ideal choice for a wide range of industries, including telecommunications, automotive, industrial automation, and consumer electronics. Whether used for data transmission, power distribution, or signal routing, this pin header delivers reliable and efficient connectivity.
In conclusion, the 2.0mm DIP Double Row Stack Box Pin Header is a versatile, reliable, and high-performance electronic component that meets the connectivity needs of modern electronic applications. Its compact design, durable construction, and compatibility with various applications make it an essential component for electronic designers and manufacturers. With its exceptional performance and reliability, this pin header is poised to enhance the connectivity and functionality of electronic devices across diverse industries.
