2.0mm DIP Double Row Stack Box Pin Header(HB200DF-14-2845)
Feature
This pin header features a double-row stacking box design, providing a compact and space-saving solution for connecting electronic components on the PCB. The 2.0 mm spacing allows for an efficient, secure connection, ideal for applications where space is limited and reliability is critical. Whether used in consumer electronics, industrial equipment or automotive systems, this pin header delivers superior performance and connectivity.
One of the key features of the 2.0mm DIP Dual Row Stacked Box Pin Header is its high quality construction. This pin header is made from durable materials to withstand harsh environments, ensuring long-term reliability and stability. The precision design of the pin headers also ensures a consistent and secure connection, minimizing the risk of signal interference or loss.
Specifications
Current Rating |
1 A |
Voltage Rating |
AC/DC 30 V |
Contact Resistance |
20mΩMax. |
Operating Temperature |
-40℃~+105℃ |
Insulation Resistance |
5000MΩ |
Withstanding Voltage |
500V AC/60S |
Max Processing Temperature |
260℃ for 10 Seconds |
Contact Material |
Copper Alloy, Plating Au/ Sn or others |
Housing Material |
Thermoplastic or High Temperature Thermoplastic, UL 94V-0 |

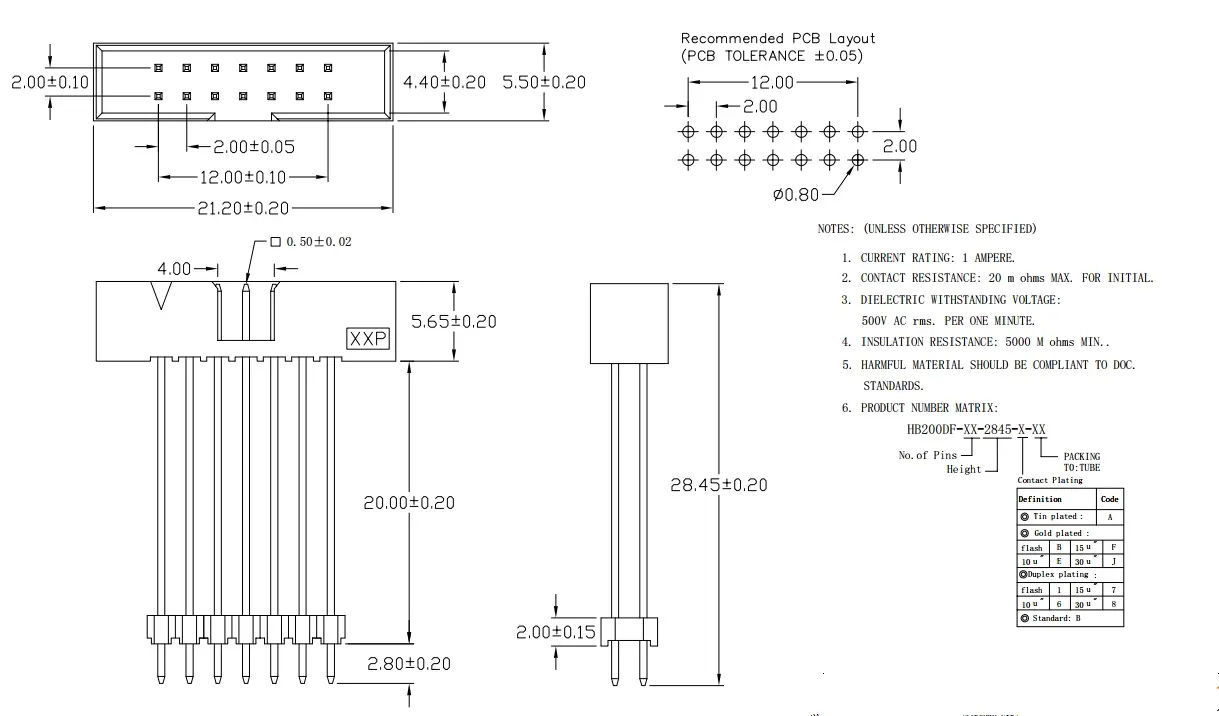

Dimension Drawings
Advantages
The pin header’s double-row stacking box design has the advantage of increasing connectivity in a compact form factor. The header features two rows of pins for higher density connections, making it suitable for applications requiring multiple signal paths or interfaces. This feature is particularly useful in applications where space optimization is critical, allowing for more efficient PCB layout and simplified designs.
In addition to its compact design, the 2.0mm DIP Dual Row Stacking Box Pin Header offers a variety of applications. Whether used for board-to-board connections, wire-to-board connections, or other interconnect solutions, this pin header provides a reliable and flexible connection solution. Its compatibility with a variety of electronic components and PCB layouts makes it a valuable asset in the design and assembly of electronic devices.
In addition, pin header compatibility with through-hole mounting technology ensures easy and safe mounting on the PCB. This simplifies the assembly process and saves time and effort during production. Secure mounting also enhances the overall durability and stability of the connection, making it suitable for applications subject to vibration, shock, or other environmental stresses.
Applications
2.0mm DIP Dual Row Stacking Box Pin Headers are designed to meet the demanding requirements of modern electronic systems. Its high-quality construction, compact design and versatile applications make it ideal for numerous industries including telecommunications, automotive, industrial automation and consumer electronics. Whether used for data transmission, power distribution or signal routing, this pin header provides reliable and efficient connections.
In summary, the 2.0mm DIP Dual Row Stacking Box Pin Header is a versatile, reliable and high-performance electronic component that meets the connectivity needs of modern electronic applications. Its compact design, durable construction, and compatibility with a variety of applications make it an important component for electronics designers and manufacturers. With its superior performance and reliability, this pin header is expected to enhance the connectivity and functionality of electronic devices across industries.
