1.27mm SMD Double Row Pin Header(HP127SB-XXXX)

Pitch 1.27mm SMD Double Header/H: S1-2.50mm, S2-2.90mm, S3-1.70mm

The 1.27mm SMD double row pin header is a versatile and reliable electronic component that is designed to provide a secure and stable connection in a wide range of applications. With its compact size and high-performance capabilities, this pin header is an essential component for electronic devices and circuit boards.

product details

Feature

‌ The 1.27mm SMD double row pin header features a double row of pins with a pitch of 1.27mm, making it suitable for applications that require a high-density connection. It is designed to be surface mounted, allowing for easy and efficient installation on PCBs. The pins are made of high-quality materials, ensuring durability and long-term performance. Additionally, the pin header is available in various pin lengths and configurations to accommodate different design requirements.

Specifications

Current Rating	1A AC/DC
Voltage Rating	30V AC/DC
Contact Resistance	20mΩMax.
Operating Temperature	-40℃~+105℃
Insulation Resistance	5000MΩ
Withstanding Voltage	500V AC/60S
Max Processing Temperature	260℃ for 10 Seconds
Contact Material	Copper Alloy, Plating Au/ Sn or others
Housing Material	Thermoplastic or High Temperature Thermoplastic, UL 94V-0

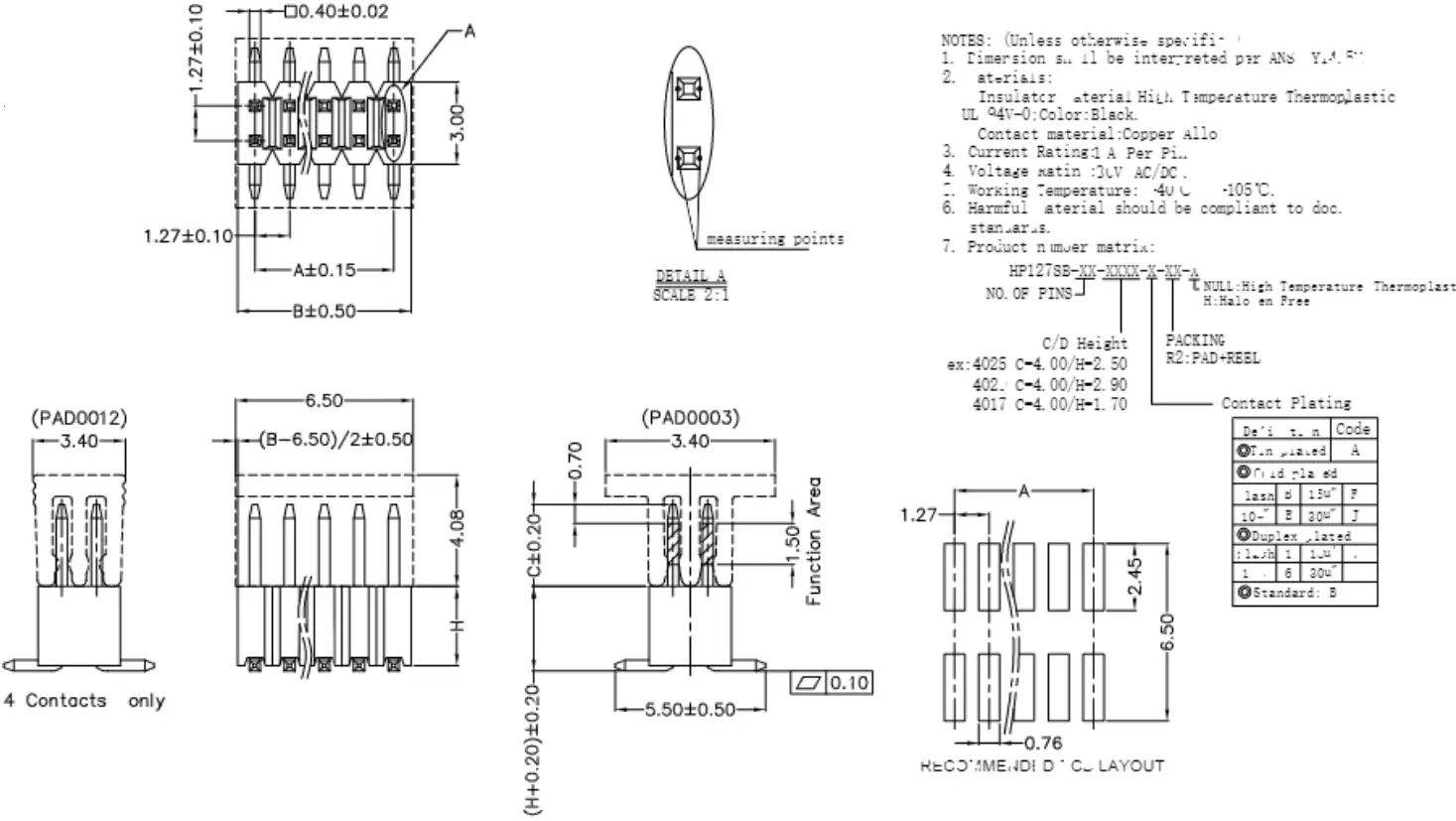

Dimension Drawings

Pitch 1.27mm SMD Double Header/H: S1-2.50mm, S2-2.90mm, S3-1.70mm

Advantages

One of the key advantages of the 1.27mm SMD double row pin header is its high reliability and stability. The double row configuration provides a secure connection, minimizing the risk of signal interference or disconnection. The surface mount design also allows for a compact and space-saving installation, making it ideal for applications with limited PCB real estate. Furthermore, the pin header is designed to withstand harsh environmental conditions, making it suitable for use in industrial and automotive applications.

Another advantage of the 1.27mm SMD double row pin header is its versatility. It can be used in a wide range of electronic devices and equipment, including computers, telecommunications devices, consumer electronics, and industrial control systems. Its compatibility with standard PCB layouts and assembly processes makes it a convenient and cost-effective solution for electronic manufacturers.

Applications

The 1.27mm SMD double row pin header is commonly used in applications that require a high-density and reliable connection. It is well-suited for use in PCBs for data communication, power distribution, and signal transmission. Its compact size and robust construction make it an ideal choice for applications where space is limited and durability is essential. Additionally, the pin header is suitable for use in applications that require frequent mating and unmating cycles, thanks to its secure and stable connection.

In conclusion, the 1.27mm SMD double row pin header is a versatile, reliable, and high-performance electronic component that is essential for modern electronic devices and equipment. Its compact size, high reliability, and compatibility with standard PCB layouts make it a valuable solution for electronic manufacturers and designers. Whether used in consumer electronics, industrial equipment, or telecommunications devices, this pin header delivers the stability and performance required for today’s demanding applications.
