1.27mm SMD Double Row Female Socket (HS127SB-0430-M)

1.27mm Pitch Socket/Double Rows/SMD/H: 4.3mm

product details

Feature

The 1.27mm SMD double row socket is characterized by its precision engineering and high-quality materials, ensuring exceptional performance and durability. With a pitch of 1.27mm, this socket is designed to provide a secure and stable connection for surface mount devices, making it suitable for use in compact and space-constrained applications.

Specifications

Current Rating	1 A
Voltage Rating	AC/DC 30 V
Contact Resistance	20mΩMax.
Operating Temperature	-40℃~+105℃
Insulation Resistance	1000MΩ
Withstanding Voltage	500V AC/60S
Max Processing Temperature	260℃ for 10 Seconds
Contact Material	Copper Alloy, Plating Au/ Sn or others
Housing Material	Thermoplastic or High Temperature Thermoplastic, UL 94V-0

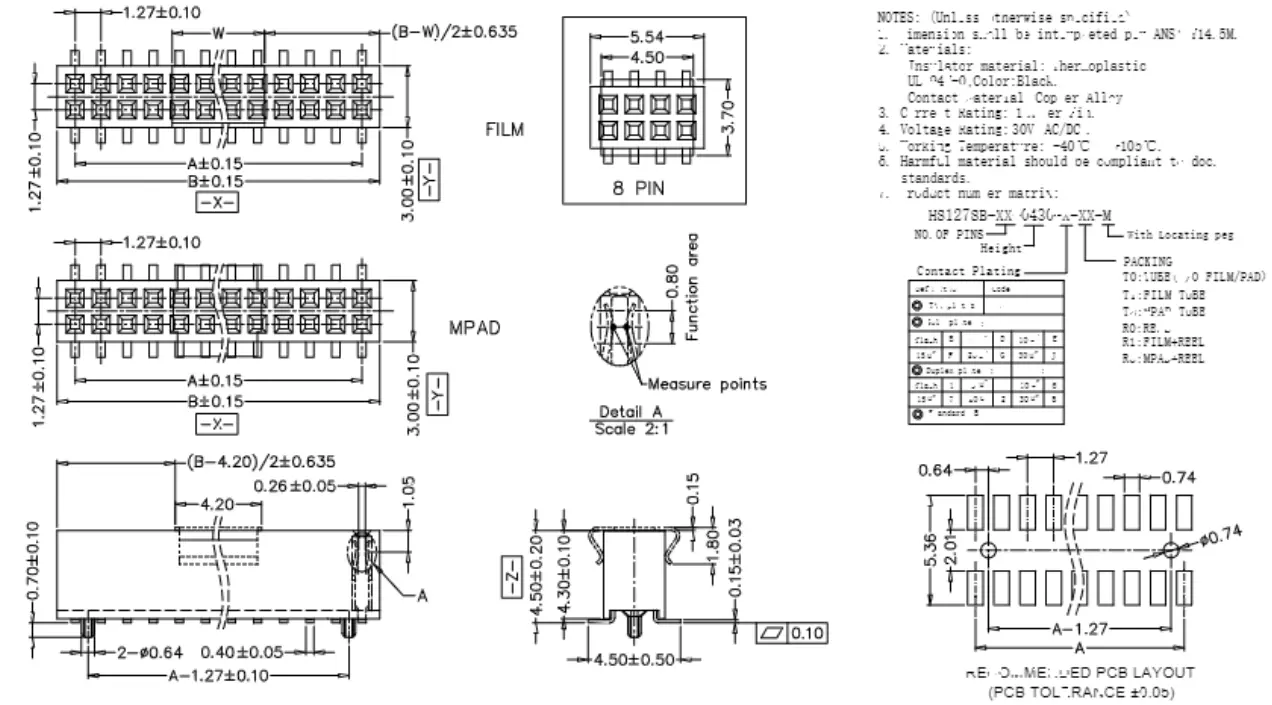

Dimension Drawings

1.27mm Pitch Socket/Double Rows/SMD/H: 4.3mm

Advantages

One of the key advantages of the 1.27mm SMD double row socket is its dual-row design, which allows for increased connectivity and signal density. This feature makes it an excellent choice for applications that require a high level of functionality in a limited space, such as mobile devices, consumer electronics, and industrial control systems.

In addition to its compact design, the 1.27mm SMD double row socket offers excellent electrical performance, with low contact resistance and high current-carrying capacity. This ensures reliable signal transmission and power delivery, making it suitable for a wide range of high-speed and high-frequency applications.

The socket is also designed for easy and efficient assembly, with a surface mount configuration that simplifies the manufacturing process and reduces production costs. Its durable construction and robust materials make it suitable for use in harsh operating environments, providing long-term reliability and performance.

The 1.27mm SMD double row socket is compatible with a variety of industry-standard specifications, making it easy to integrate into existing designs and systems. Its versatility and compatibility make it an ideal choice for OEMs and electronics manufacturers looking for a reliable and cost-effective connectivity solution.

Applications

Applications for the 1.27mm SMD double row socket are wide-ranging, including but not limited to:

Mobile devices: The compact size and high-density connectivity make the socket ideal for use in smartphones, tablets, and wearable devices, where space is at a premium.
Consumer electronics: From digital cameras to gaming consoles, the socket’s high-performance characteristics make it suitable for a wide range of consumer electronics applications.
Industrial control systems: The socket’s robust construction and reliable performance make it well-suited for use in industrial automation, robotics, and other control systems.
Networking and telecommunications: The socket’s high-speed and high-frequency capabilities make it an excellent choice for networking equipment, routers, and telecommunications devices.

In conclusion, the 1.27mm SMD double row socket offers a winning combination of compact design, high performance, and versatility, making it an ideal choice for a wide range of electronic applications. Its precision engineering, reliable connectivity, and compatibility with industry standards make it a valuable component for OEMs and electronics manufacturers seeking a reliable and cost-effective connectivity solution.
