1.27mm DIP Single Row Female Socket (HS127DA-0340)
Feature
Our 1.27 mm female connectors feature a compact, durable design designed to withstand the rigors of electronic applications. It is constructed with high-quality materials to ensure long-lasting performance and reliability. The precision engineering of this female header guarantees a perfect fit and seamless connection, making it ideal for a variety of electronic projects.
Specifications
Current Rating |
1 A |
Voltage Rating |
AC/DC 30 V |
Contact Resistance |
20mΩMax. |
Operating Temperature |
-40℃~+105℃ |
Insulation Resistance |
1000MΩ |
Withstanding Voltage |
500V AC/60S |
Max Processing Temperature |
260℃ for 10 Seconds |
Contact Material |
Copper Alloy, Plating Au/ Sn or others |
Housing Material |
Thermoplastic or High Temperature Thermoplastic, UL 94V-0 |

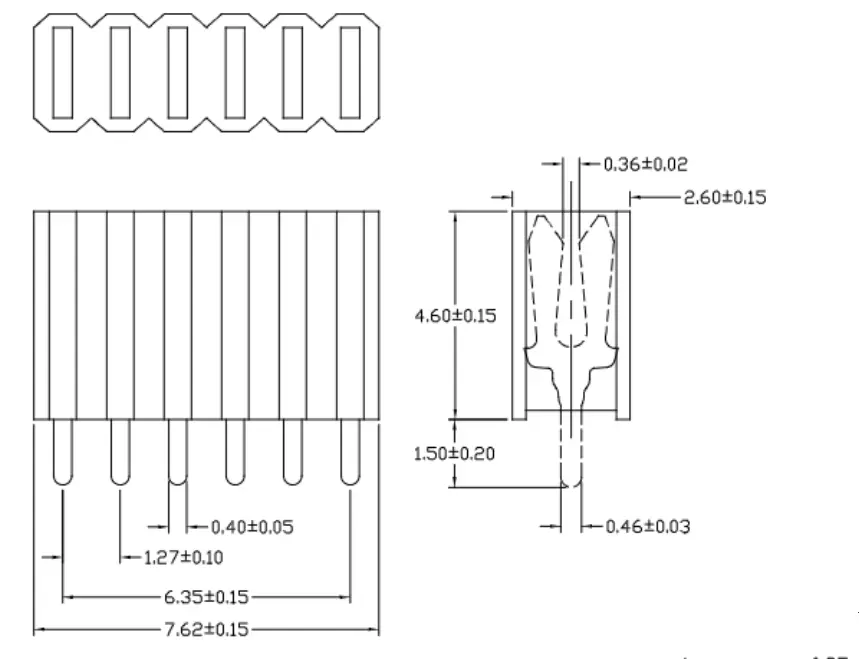

Dimension Drawings
Advantages
One of the main advantages of our 1.27 mm female connectors is their versatility. It can be used in a wide range of applications including but not limited to PCBs, electronic modules and other electronic devices. Its compatibility with different electronic components and circuit boards makes it a valuable addition to any electronics design or project.
Applications
The female header’s 1.27mm spacing provides a precise and secure connection, making it suitable for applications where space is limited and high precision is required. Its small form factor enables efficient use of PCB space, making it ideal for compact electronic designs.
In addition, the 1.27mm female header is designed for easy installation, saving time and effort during assembly. Its user-friendly design ensures easy integration into your electronics projects, making it a convenient and practical solution for electronics engineers and hobbyists alike.
