1.27mm DIP Pin Header(HP127DA-XXXX)

Pitch 1.27mm/DIP Header/Single Row/Straight

Height of Pins to customized.

product details

Feature

‌ 1.27mm DIP pin header is a versatile and reliable connection solution widely used in various electronic applications. With its unique features and benefits, this pin header delivers a high level of performance and flexibility, making it an ideal choice for designers and engineers looking for reliable interconnect solutions.

The 1.27mm pin header features compact size and precise pin spacing, making it suitable for applications where space is limited. The headers are designed with a pitch of 1.27mm, enabling high-density connections on the PCB while maintaining a small footprint. This makes it an excellent choice for applications such as consumer electronics, telecommunications equipment and industrial control systems.

Specifications

Current Rating	1A AC/DC
Voltage Rating	30V AC/DC
Contact Resistance	20mΩMax.
Operating Temperature	-40℃~+105℃
Insulation Resistance	5000MΩ
Withstanding Voltage	500V AC/60S
Max Processing Temperature	260℃ for 10 Seconds
Contact Material	Copper Alloy, Plating Au/ Sn or others
Housing Material	Thermoplastic or High Temperature Thermoplastic, UL 94V-0

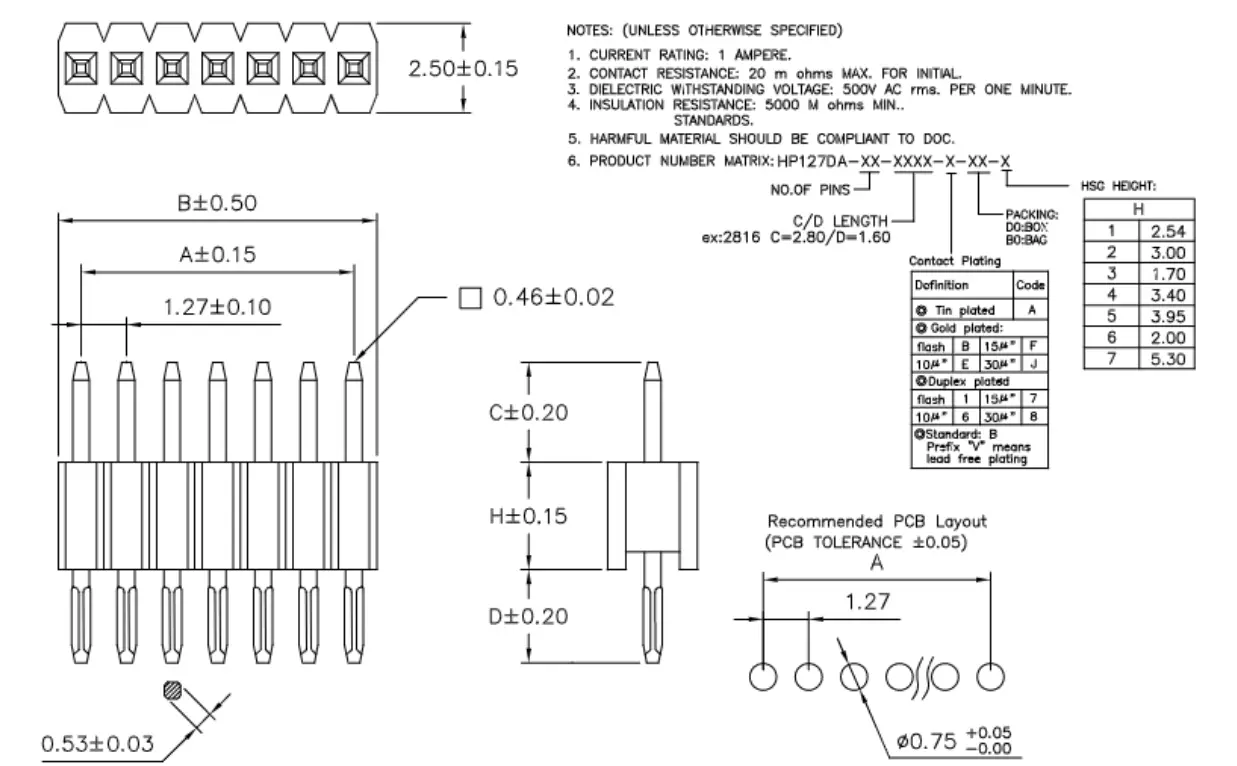

Dimension Drawings

Pitch 1.27mm/DIP Header/Single Row/Straight

Advantages

One of the main advantages of 1.27mm pin headers is their rugged construction and reliable performance. Connectors are typically made from high-quality materials such as phosphor bronze or brass, ensuring excellent electrical conductivity and mechanical strength. This makes it suitable for use in demanding environments where reliability is critical. In addition, headers are available in a variety of configurations, including single- and dual-row options and varying pin lengths, allowing for design and application flexibility.

Another advantage of the 1.27mm pin header is that it is compatible with standard PCB layout and assembly processes. The header is designed to be easily mounted to a PCB using through-hole soldering technology, providing a safe and stable connection. This ease of assembly makes the joint a cost-effective solution for manufacturers as it reduces production time and labor costs.

Applications

1.27mm pin headers are widely used in various electronic applications, including but not limited to:

Networking equipment: Connectors are commonly used in routers, switches, and network interface cards to provide reliable connections between PCBs and other components.
Test and measurement instruments: Its compact size and high-density pin configuration make the connector suitable for use with oscilloscopes, signal generators and other test equipment.
Industrial Automation: Connectors are used in control systems, PLCs and industrial sensors to facilitate safe and stable connections in harsh industrial environments.
Consumer electronics: This connector is small in size and reliable in performance, making it ideal for use in devices such as smart home appliances, wearable devices, and handheld devices.

In summary, the 1.27mm Dip header is a versatile and reliable interconnect solution that offers a range of benefits, including compact size, high-density pin configuration, rugged construction, and compatibility with standard PCB layouts. Its applications span a variety of industries, making it an important part of electronics design and manufacturing. Whether you are designing new electronics or looking to upgrade existing electronics, 1.27mm straight pin connectors are a reliable choice for your connectivity needs.
