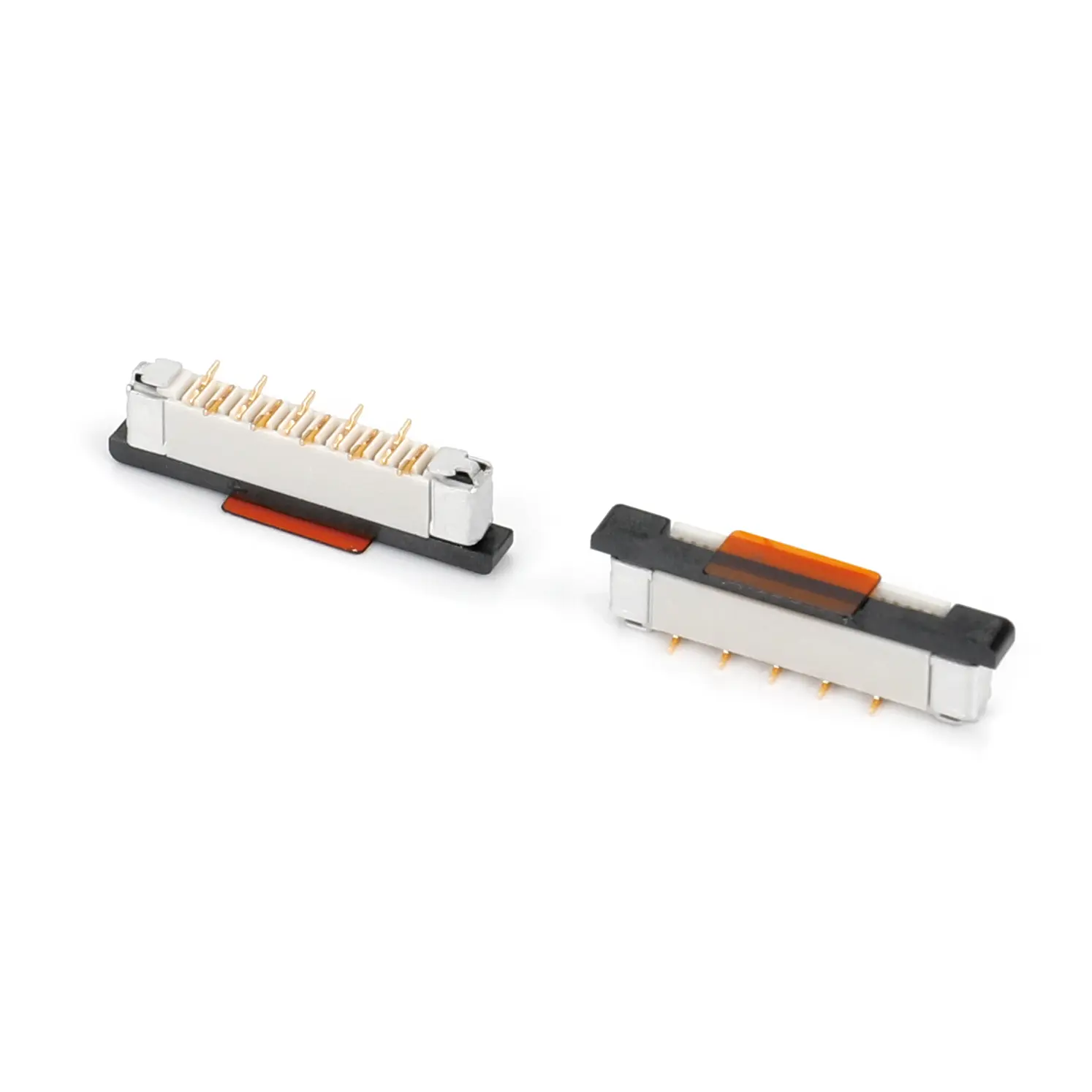

1.00mm Pitch, ZIF, SMT, Top Contact FPC Connector

FPC Connector 1.00mm Pitch, ZIF, SMT, Top Contact

    Contact us
    Product Detail

    Vertical 1.0mm Pitch FPC Connector

    Current Rating: 0.5A
    Voltage Rating: AC 50V
    Contact Resistance: 40mΩ Max. Initial
    Operation Temperature: ﹣25℃~ +85℃
    Insulation Resistance: 100MΩ
    Withstanding Voltage: 250V AC/60S
    Contact Material: Copper Alloy
    Housing Material: Thermoplastic. UL 94V-0

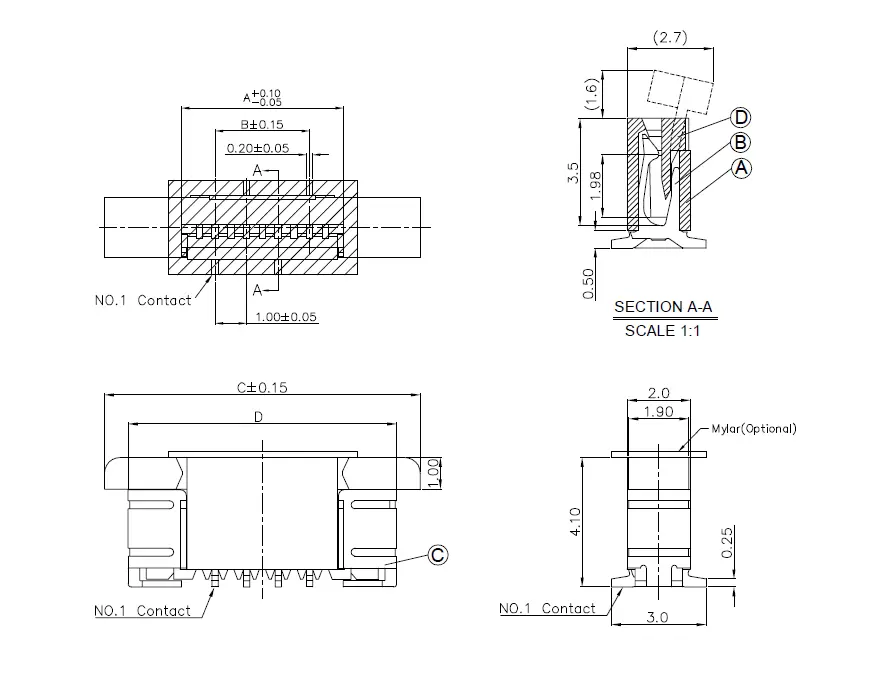

    Drawing:

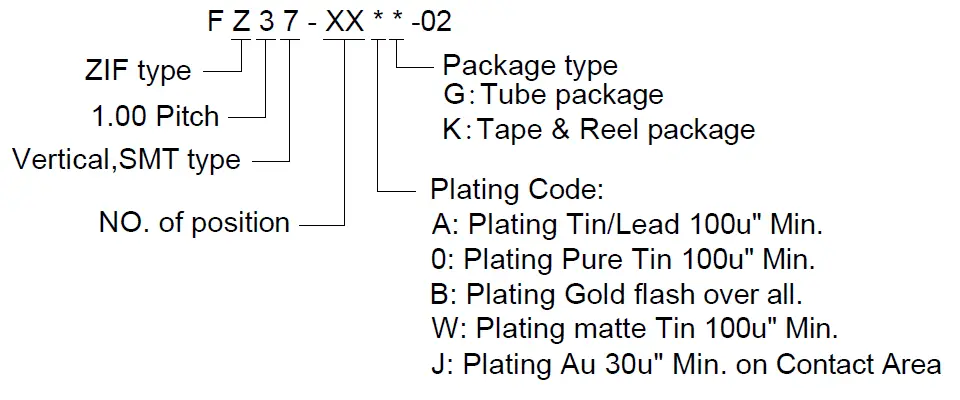

    Product Number Matrix:
