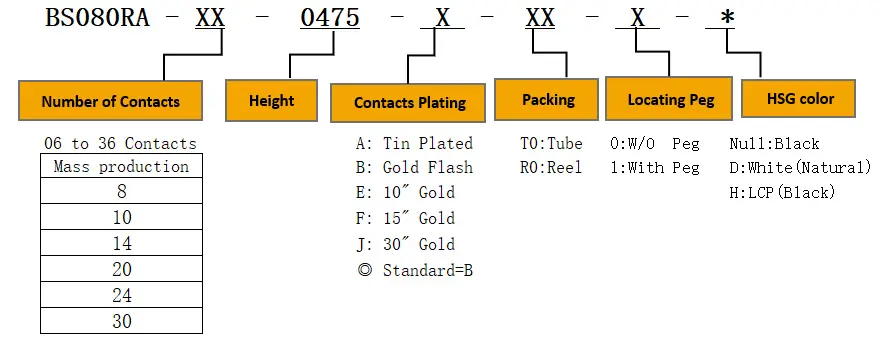

0.8mm Pitch Single Slot BTB Right Angle Female Connector (BS080RA-0475)

Pitch: 0.8mm

Soldering type: SMT

Pins: 8, 10, 14, 20, 24, 30

Connection Type: Horizon/Right Angel

Transmission Speed: 10 Gbps

product details

Specifications

Current Rating	0.5 A
Voltage Rating	AC 50 V
Contact Resistance	50mΩMax. Initial
Operating Temperature	-40℃~+105℃
Insulation Resistance	100MΩ
Withstanding Voltage	500V AC/60S
Max Processing Temperature	260℃ for 10 Seconds
Contact Material	Copper Alloy
Housing Material	High Temperature Thermoplastic. UL 94V-0

Materials

Item	Standard
Housing	High Temperature Thermoplastic , UL 94V-0
Contact	Copper Alloy, Gold plating

Ratings

Item	Standard
Current Rating	0.5 A AC/DC Max.
Voltage Rating	50V AC/DC
Ambient Temperature Range	-40℃ ~ +105℃
Storage Temperature Range	-40℃ ~ +85℃
Ambient Range	95﹪ R.H. Max.

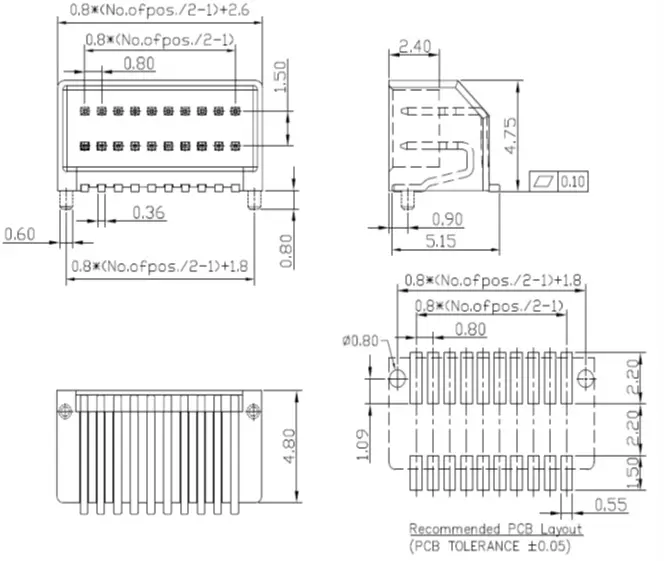

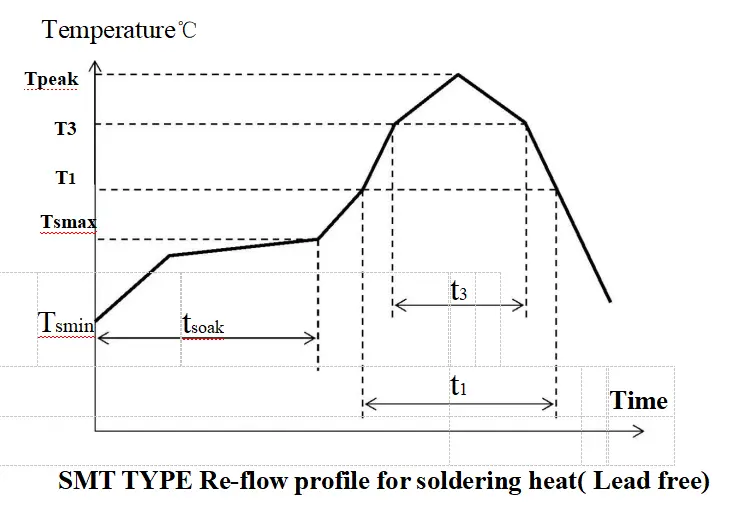

Reflow Profile for soldering heat resistance testing

Parameter	Mark	Major parts
Speed of temperature-raising		Not raise over 3℃ for each second
Temperature Min (Ts min )	Ts min	150℃
Temperature Max (Ts max)	Ts max	200℃
Time (ts min to ts max)	TS	2-3 mins
Time of temperature over 217℃	T1	60-150 Seconds（T3）
At the reflow area	Ts	20 - 40 Seconds (T3)
At the highest temperature	T Peak	260 (+0/-5℃)
Speed of temperature-deceasing		Not decrease over 6℃ for each second
Time from 25℃ to highest temperature		Not over 8 minutes

Features

With a pitch of 0.8mm, this connector is suitable for applications requiring high-density interconnects. The soldering type is SMT, ensuring easy and secure mounting on the PCB. Available in various pin configurations including 8, 10, 14, 16, 20, 24, 26, 30, 32, and 34 pins, this connector provides flexibility to meet different design requirements.

The connection type options include horizontal, right angle, and vertical, allowing for versatile integration into your electronic designs. Whether you need a compact horizontal connection or a space-saving vertical configuration, this connector offers the flexibility to accommodate various layout constraints.

One of the key features of this connector is its impressive transmission speed of 10 Gbps, making it ideal for high-speed data applications. Whether you are dealing with large data transfers or high-bandwidth communication, this connector ensures reliable and efficient signal transmission.
