0.8mm Pitch BTB Male Connector (BP080SA-0330)
Specifications
Current Rating |
0.5 A |
Voltage Rating |
AC 50 V |
Contact Resistance |
50mΩMax. Initial |
Operating Temperature |
-40℃~+105℃ |
Insulation Resistance |
100MΩ |
Withstanding Voltage |
500V AC/60S |
Max Processing Temperature |
260℃ for 10 Seconds |
Contact Material |
Copper Alloy |
Housing Material |
High Temperature Thermoplastic. UL 94V-0 |
Features
This cutting-edge connector is designed to meet the demands of high-speed data transmission and offers a reliable and efficient solution for your connectivity needs.
With a pitch of 0.8mm, this connector is suitable for applications requiring high-density interconnects. The soldering type is SMT, ensuring easy and secure mounting on the PCB. Available in various pin configurations including 8, 10, 14, 16, 20, 24, 26, 30, 32, and 34 pins, this connector provides flexibility to meet different design requirements.
The connection type options include horizontal, right angle, and vertical, allowing for versatile integration into your electronic designs. Whether you need a compact horizontal connection or a space-saving vertical configuration, this connector offers the flexibility to accommodate various layout constraints.
One of the key features of this connector is its impressive transmission speed of 10 Gbps, making it ideal for high-speed data applications. Whether you are dealing with large data transfers or high-bandwidth communication, this connector ensures reliable and efficient signal transmission.
Furthermore, the stacking height options of 4.55mm, 4.9mm, 6.0mm, 6.5mm, 6.5mm, 6.95mm, 7.95mm, and 8.95mm provide versatility in designing for different PCB stack-up requirements. This allows for seamless integration into your existing designs or new projects, offering the flexibility needed for diverse applications.
In conclusion, the 0.8mm Pitch Single Slot Connector is a high-performance, versatile, and reliable solution for your board-to-board connectivity needs. With its high-speed transmission capabilities, various pin configurations, and flexible connection types, this connector is well-equipped to meet the challenges of modern electronic designs. Whether you are working on data-intensive applications, high-speed communication systems, or compact electronic devices, this connector is the perfect choice to ensure seamless and efficient connectivity.

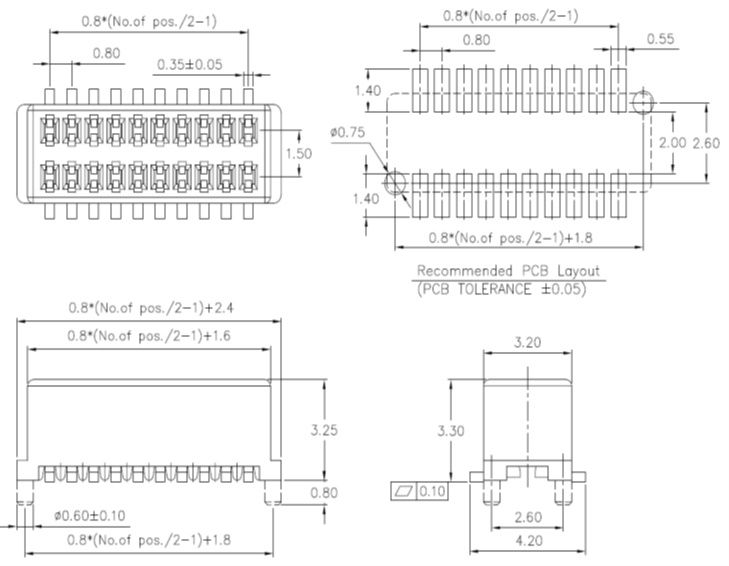

Dimension Drawings

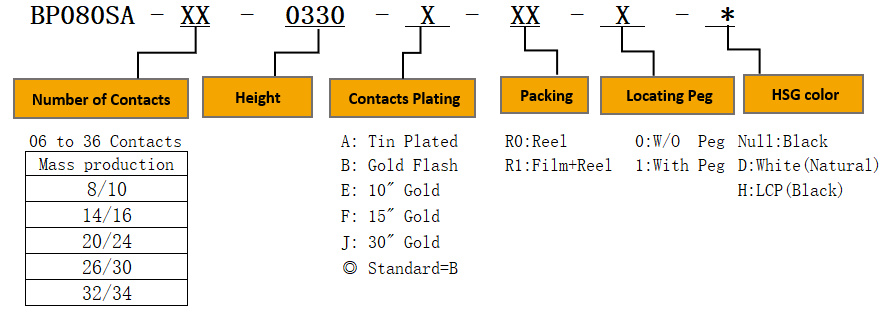

Ordering Information
