0.8mm Pitch Single Slot BTB Female Connector (BS080SA-1180)
Specifications
Current Rating |
0.5 A |
Voltage Rating |
AC 50 V |
Contact Resistance |
50mΩMax. Initial |
Operating Temperature |
-40℃~+105℃ |
Insulation Resistance |
100MΩ |
Withstanding Voltage |
500V AC/60S |
Max Processing Temperature |
260℃ for 10 Seconds |
Contact Material |
Copper Alloy |
Housing Material |
High Temperature Thermoplastic. UL 94V-0 |
Features
This cutting-edge connector is designed to meet the demands of high-speed data transmission and offers a range of features that make it an ideal choice for a wide variety of applications.
With a pitch of 0.8mm, this connector is optimized for high-density applications where space is at a premium. The soldering type is SMT, ensuring a reliable and robust connection that can withstand the rigors of demanding environments. Available in a range of pin options including 30, 40, 50, 60, 80, 100, 120, and 140, this connector offers flexibility to suit a variety of design requirements.
The connection type is vertical, making it suitable for applications where a vertical orientation is preferred. With a transmission speed of 12 Gbps, this connector is capable of handling high-speed data transmission with ease, making it an ideal choice for applications where speed and reliability are paramount.
The stacking height of 5 - 20mm provides further flexibility, allowing for customization to suit specific design requirements. This makes the 0.8mm Pitch Single Slot BTB Female Connector a versatile solution that can be tailored to meet the needs of a wide range of applications.
Whether it’s in the realm of consumer electronics, telecommunications, industrial equipment, or beyond, this connector is poised to deliver exceptional performance and reliability. Its robust construction and high-speed capabilities make it an ideal choice for applications where performance and durability are non-negotiable.
In conclusion, the 0.8mm Pitch Single Slot BTB Female Connector represents a leap forward in connector technology. With its high-speed capabilities, flexible pin options, and robust construction, it is poised to meet the demands of the most challenging applications. Whether you’re designing the next generation of consumer electronics or pushing the boundaries of industrial technology, this connector is ready to meet your needs.
In conclusion, the Single Slot BTB Male Connector is a game-changer in connector technology, offering unmatched performance, reliability, and versatility. Whether you’re a design engineer, a manufacturer, or an electronics enthusiast, this connector is the perfect choice for your connectivity needs. Experience the difference with our Single Slot BTB Male Connector and take your designs to the next level.

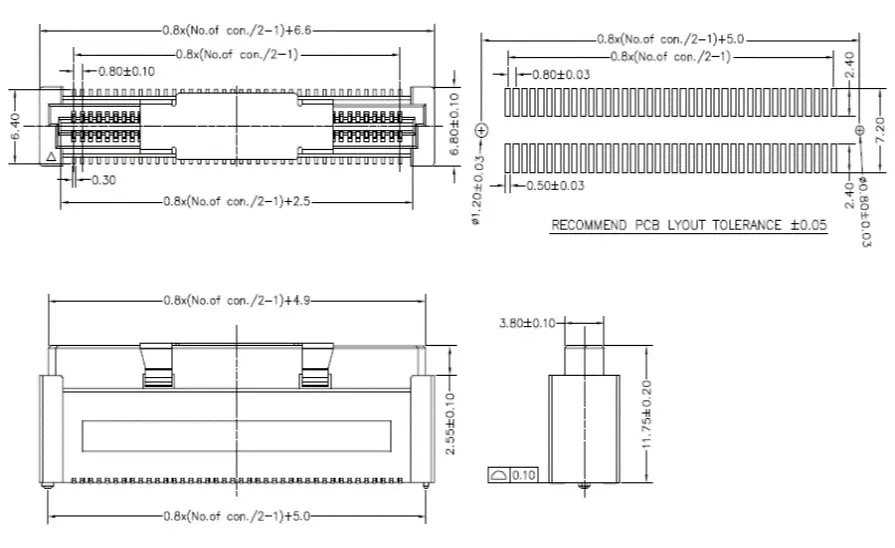

Dimension Drawings

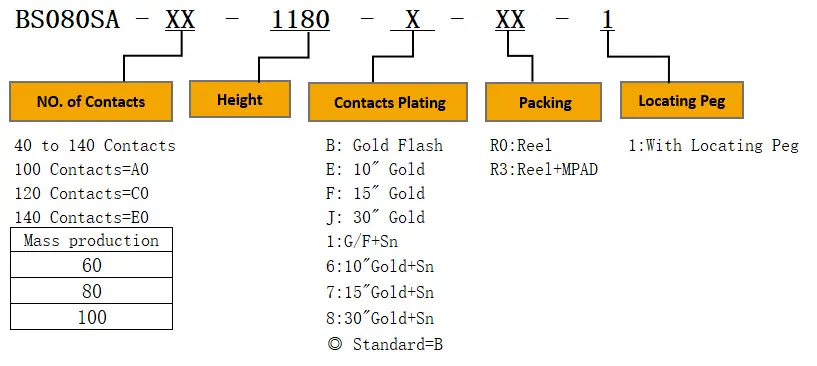

Ordering Information
Stacking height
