0.5mm Pitch BTB Connector (BS050SD-0270)

Pitch: 0.5mm

Soldering type: SMT

Pins: 10, 14, 20, 30, 32, 36, 40, 50, 60, 80, 100, 120

Connection Type: Vertical

Transmission Speed: 5 Gbps

Stacking Height: 3.0, 3.5, 4.0, 5.0

product details

Specifications

Current Rating	0.5 A
Voltage Rating	AC/DC 50 V
Contact Resistance	50mΩMax. Initial
Operating Temperature	-55℃~+125℃
Insulation Resistance	100MΩ
Withstanding Voltage	150V AC/60S
Max Processing Temperature	260℃ for 10 Seconds
Contact Material	Copper Alloy
Housing Material	High Temperature Thermoplastic. UL 94V-0

Features

This cutting-edge connector is designed to provide high-speed, reliable connections for a variety of electronic devices and applications. The connector’s 0.5 mm pitch makes it ideal for compact and space-constrained designs, making it ideal for modern electronic devices where miniaturization is a key requirement.

Our 0.5mm pitch SMT connectors are available in a variety of pin configurations, including 10, 14, 20, 30, 32, 36, 40, 50, 60, 80, 100 and 120 pins, providing the flexibility to meet specific needs your design. The vertical connection method ensures a safe and stable connection, and the 5Gbps transmission speed enables high-speed data transmission, which is suitable for applications that require fast and reliable data transmission.

One of the key features of our 0.5mm pitch SMT connectors is their stacking height options, including 3.0mm, 3.5mm, 4.0mm and 5.0mm. This enables design versatility and enables engineers to optimize PCB layout while maintaining a compact form factor.

In summary, our 0.5mm pitch SMT connectors combine high-speed data transfer, compact design and flexibility, making them ideal for a variety of electronic applications. Available in a variety of pin configurations, vertical connection types, and stacking height options, this connector gives you the versatility and performance you need to implement your designs.

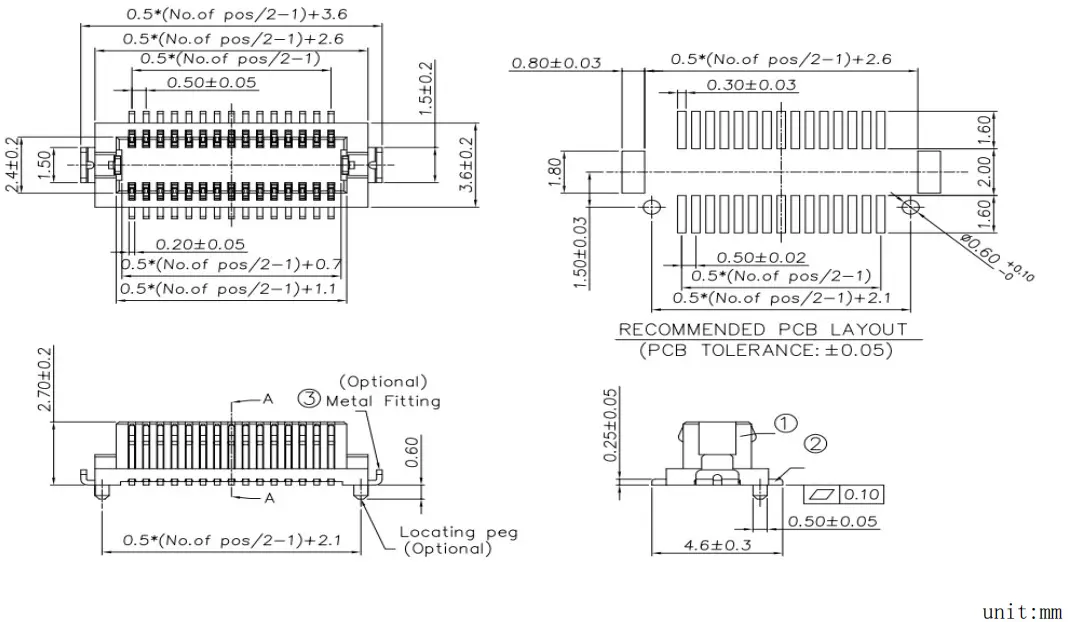

Dimension Drawings

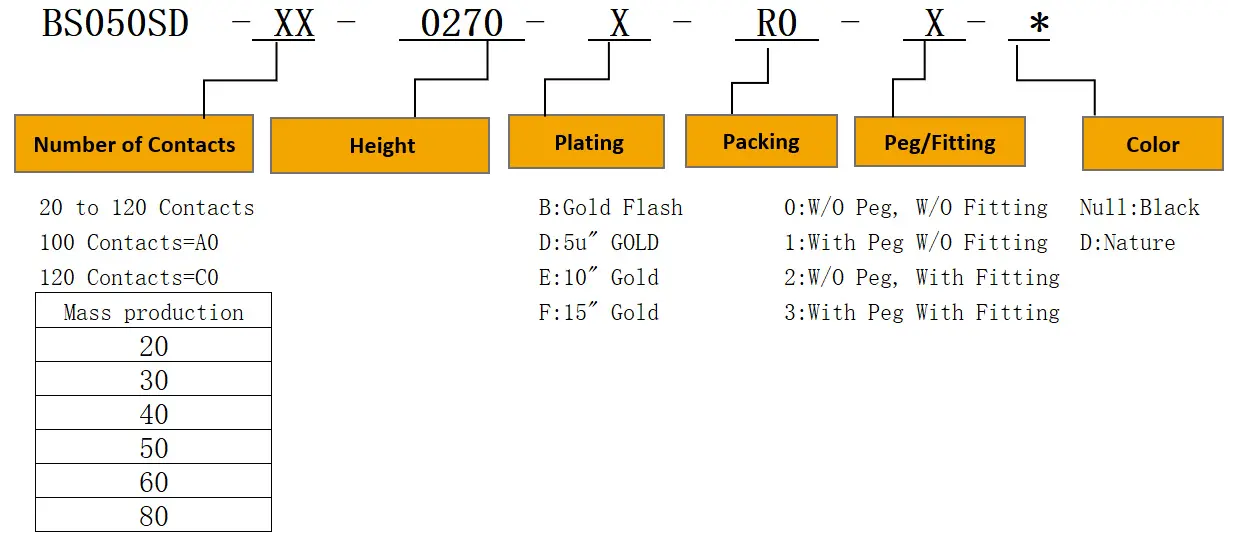

Ordering Information

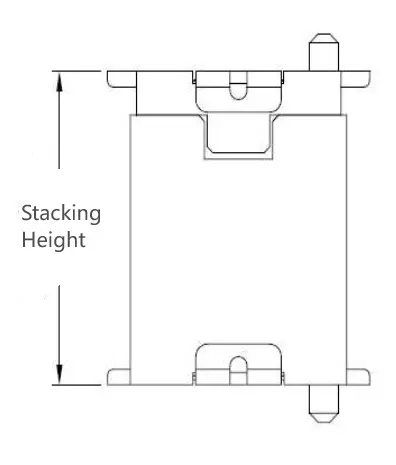

Stacking height

Stacking Height (MM)		Height (mm)	Plug
			BP050SD-*- 0230-	BP050SD-*- 0280-	BP050SD-*- 0330-	BP050SD- *- 0430-
			2.3	2.8	3.3	4.3
Socket	BS050SD- *-0220-	2.2	3.0	-	-	-
Socket	BS050SD- *-0270-	2.7	-	3/5	4.0	5.0
