0.5mm Pitch BTB Connector (BS050SD-0220)
Specifications
Current Rating |
0.5 A |
Voltage Rating |
AC/DC 50 V |
Contact Resistance |
50mΩMax. Initial |
Operating Temperature |
-55℃~+125℃ |
Insulation Resistance |
100MΩ |
Withstanding Voltage |
150V AC/60S |
Max Processing Temperature |
260℃ for 10 Seconds |
Contact Material |
Copper Alloy |
Housing Material |
High Temperature Thermoplastic. UL 94V-0 |
Features
This cutting-edge connector is designed to provide high-speed and reliable connections for a wide range of electronic devices and applications. With a pitch of 0.5mm, this connector is ideal for compact and space-constrained designs, making it perfect for modern electronic devices where miniaturization is a key requirement.
Available in various pin configurations including 10, 14, 20, 30, 32, 36, 40, 50, 60, 80, 100, and 120 pins, our 0.5mm pitch SMT connector offers flexibility to meet the specific needs of your design. The vertical connection type ensures secure and stable connections, while the transmission speed of 5 Gbps enables high-speed data transfer, making it suitable for applications requiring fast and reliable data transmission.
No matter that you are designing consumer electronics, industrial equipment, or any other electronic device that requires high-speed and reliable board-to-board connections, our 0.5mm pitch SMT connector is the perfect solution. Its robust construction and high-quality materials ensure durability and long-term performance, making it a reliable choice for your electronic designs.

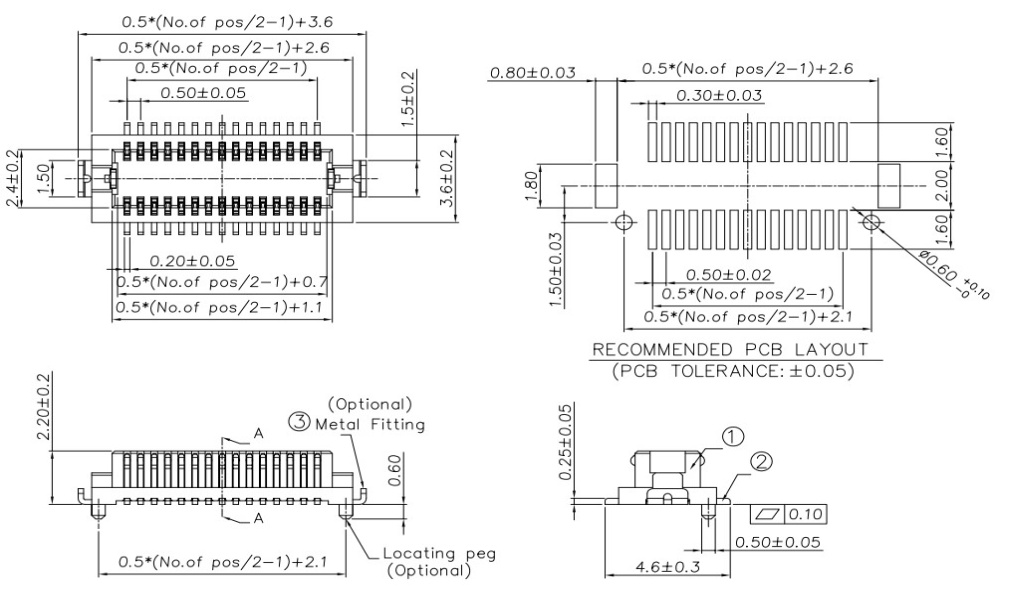

Dimension Drawings

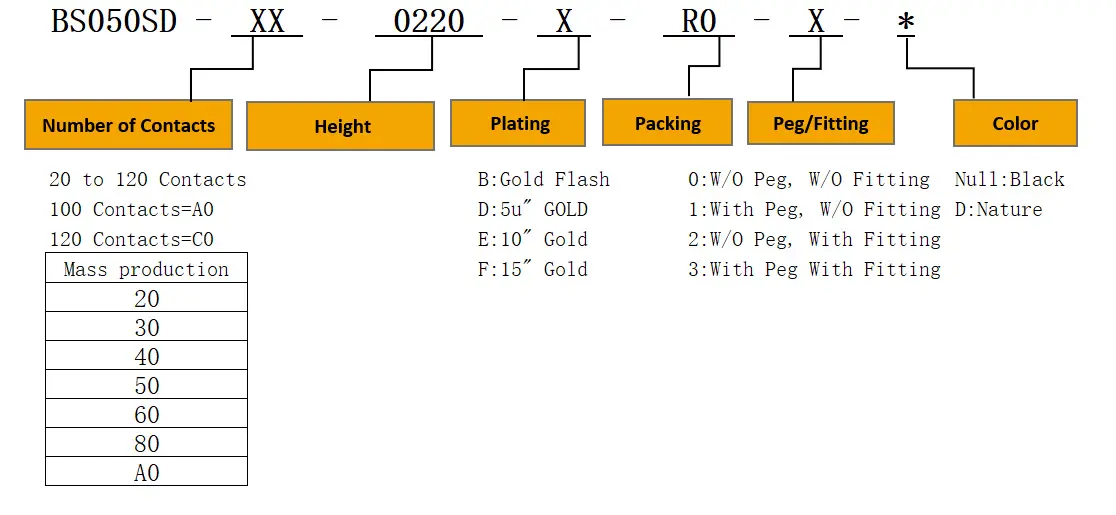

Ordering Information
Stacking height
|
Stacking Height (MM) |
Height (mm) |
Plug |
||||
BP050SD-**- |
BP050SD-**- |
BP050SD-**- |
BP050SD- |
||||
2.3 |
2.8 |
3.3 |
4.3 |
||||
|
Socket |
BS050SD- |
2.2 |
3.0 |
- |
- |
- |
|
BS050SD- |
2.7 |
- |
3/5 |
4.0 |
5.0 |
||
