0.5mm Pitch BTB Connector (BP050SD - 0280)
Specifications
Current Rating |
0.5 A |
Voltage Rating |
AC/DC 50 V |
Contact Resistance |
50mΩMax. Initial |
Operating Temperature |
-55℃~+125℃ |
Insulation Resistance |
100MΩ |
Withstanding Voltage |
150V AC/60S |
Max Processing Temperature |
260℃ for 10 Seconds |
Contact Material |
Copper Alloy |
Housing Material |
High Temperature Thermoplastic. UL 94V-0 |
Features
0.5mm pitch single slot BTB male connectors are indispensable components in electronic devices and systems. This specific connector is engineered to deliver a dependable and robust connection between printed circuit boards (PCBs) and various electronic elements. Given its diminutive size and superior performance, it finds extensive application in diverse fields, including consumer electronics, telecommunications, automotive, and industrial equipment.
The male connector features a pitch of 0.5 mm, denoting the gap from the center of one contact point to the next. This minimal pitch size enables a higher connection density on the PCB, rendering it perfect for scenarios where space is constrained. Moreover, the single-slot configuration streamlines the assembly process and guarantees a secure link between the connector and PCB.
One significant merit of the 0.5mm pitch single slot BTB male connector is its dependability. This connector is crafted to endure mechanical stress, temperature fluctuations, and electrical interference, ensuring a steady, uninterrupted connection in demanding environments. This reliability is essential for maintaining the overall performance and longevity of electronic devices.
Additionally, the connector is designed for ease of use and maintenance. Its small size and user-friendly interface facilitate the assembly and disassembly process, cutting down on installation time and effort. This aspect is particularly advantageous for manufacturers aiming to enhance their production processes and boost overall efficiency.
To sum up, 0.5mm pitch single slot BTB male connectors are crucial elements in contemporary electronic systems. Their compact dimensions, high reliability, and user-friendly design make them suitable for a multitude of applications. Whether utilized in consumer electronics, telecommunications, automotive, or industrial equipment, these connectors are essential for ensuring seamless connectivity and peak performance. As technology advances, the demand for premium connectors like the 0.5 mm pitch single slot BTB male connector is likely to rise, spurring innovation and further advancements in electronic connectivity solutions.

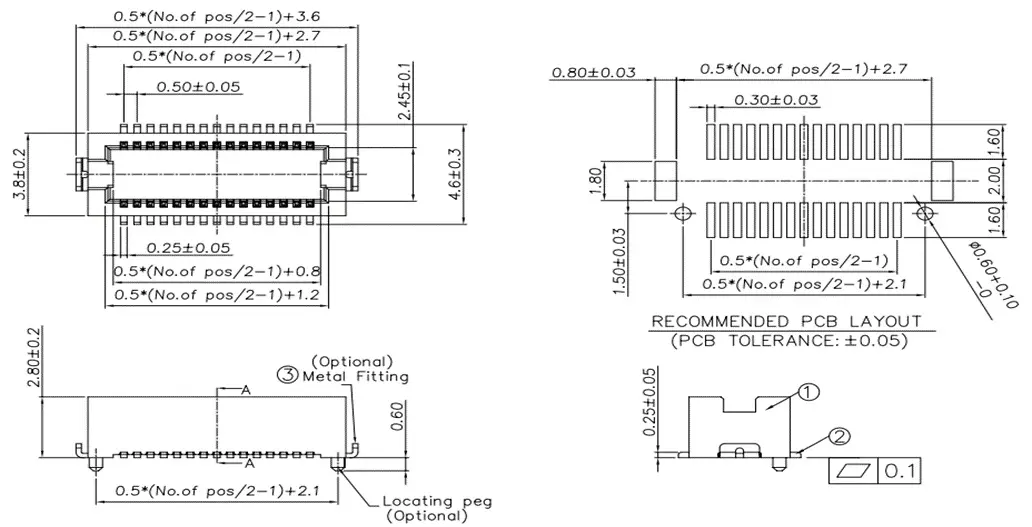

Dimension Drawings

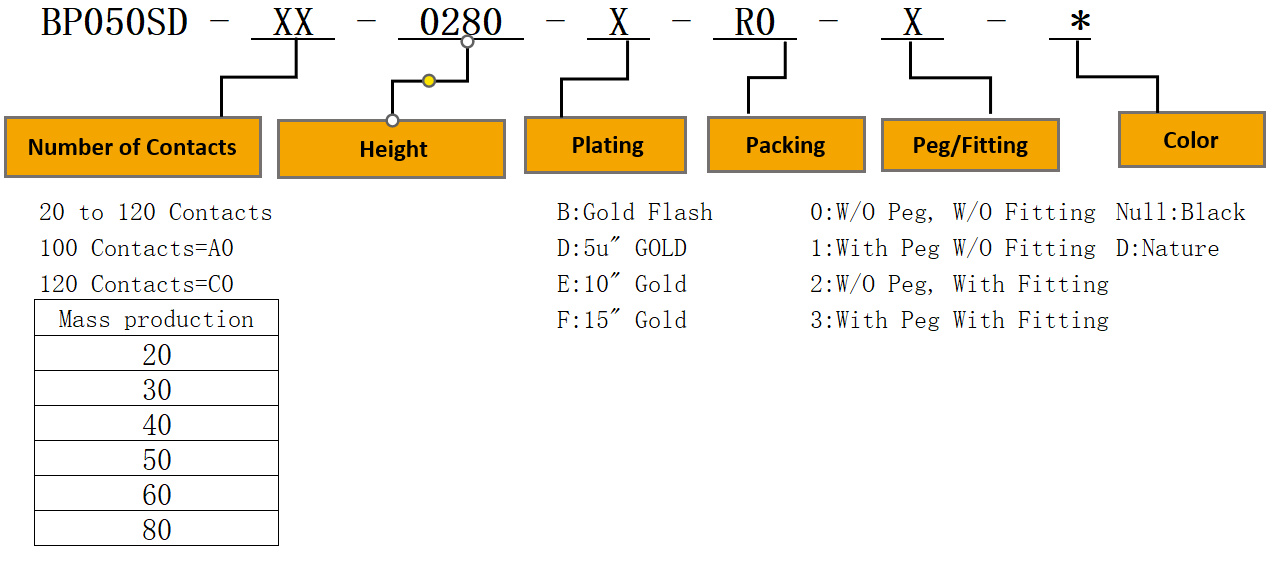

Ordering Information
Stacking height
|
Stacking Height (MM) |
Height (mm) |
Plug |
||||
BP050SD-**- |
BP050SD-**- |
BP050SD-**- |
BP050SD- |
||||
2.3 |
2.8 |
3.3 |
4.3 |
||||
|
Socket |
BS050SD- |
2.2 |
3.0 |
- |
- |
- |
|
BS050SD- |
2.7 |
- |
3/5 |
4.0 |
5.0 |
||
