0.4mm Pitch BTB Connector
product description
The high transmission speed of 8 Gbps makes this connector ideal for high-speed data applications such as high-definition video streaming, high-speed data transfer, and real-time communications. Its rugged design and high-quality construction ensure reliable performance even under the most demanding operating conditions.
In addition to its technical functionality, the connector is designed for ease of use, with a user-friendly interface that simplifies installation and maintenance. Its durable construction and high-quality materials ensure long-term reliability, making it a cost-effective solution for your connectivity needs.
Our board-to-board connector offers a winning combination of high-speed performance, versatility, and reliability, making it an ideal choice for a wide range of electronic applications. Whether you are designing the next generation of smartphones, networking equipment, or industrial control systems, this connector is ready to meet your connectivity needs. Whether you are designing the latest cutting-edge electronics or upgrading an existing system, our 0.4mm pitch SMT connectors in 120-pin and vertical connection styles are perfect for high-speed, reliable connections. Trust our expertise and innovation to take your electronic design to the next level.
Specifications
Current Rating |
0.3 A |
Voltage Rating |
AC/DC 30 V |
Contact Resistance |
60mΩMax. Initial |
Operating Temperature |
-40℃~+105℃ |
Insulation Resistance |
100MΩ |
Withstanding Voltage |
250V AC/60S |
Max Processing Temperature |
260℃ for 10 Seconds |
Contact Material |
Copper Alloy |
Housing Material |
High Temperature Thermoplastic. UL 94V-0 |
Dimension Drawings

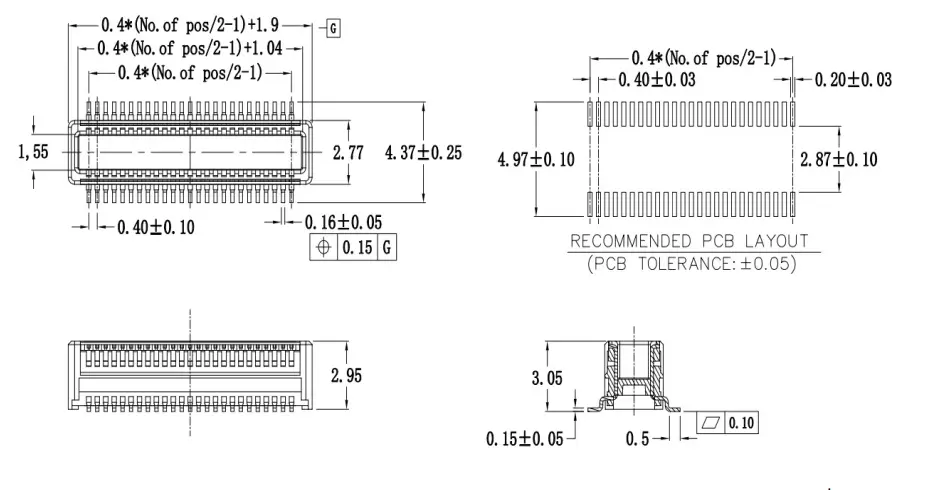

Plug:

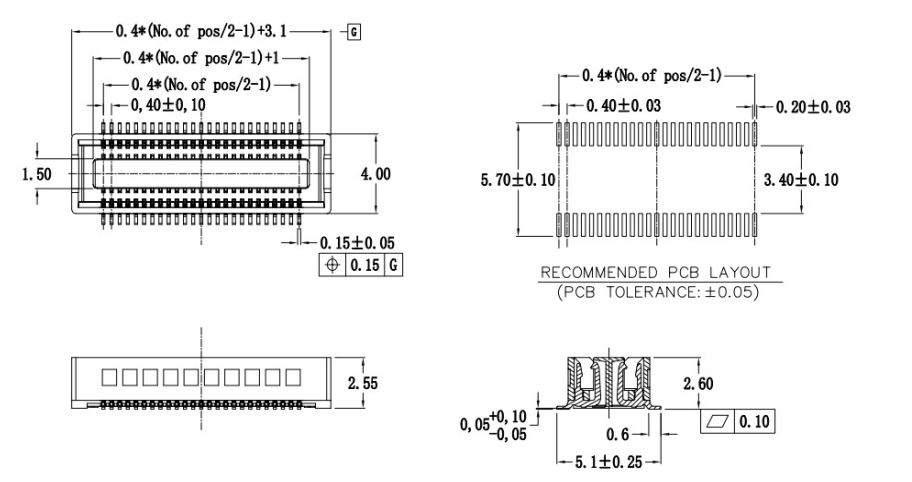

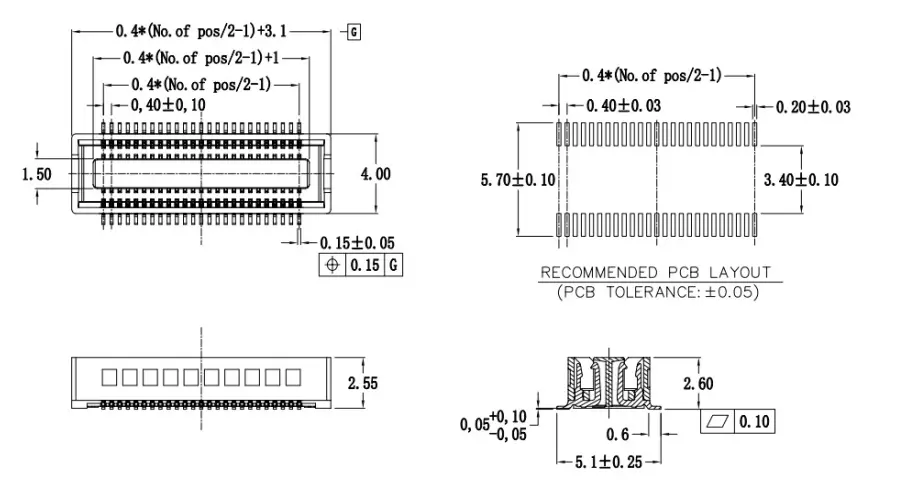

Socket:
Stacking Height
|
Stacking Height |
Height（mm） |
Plug |
|
BP040SC-**-0305-* | ||||
3.05 | ||||
Socket |
BS040SC-**-0260-* |
2.6 |
4.0 |
|
Ordering Information
Plug:
Socket:
